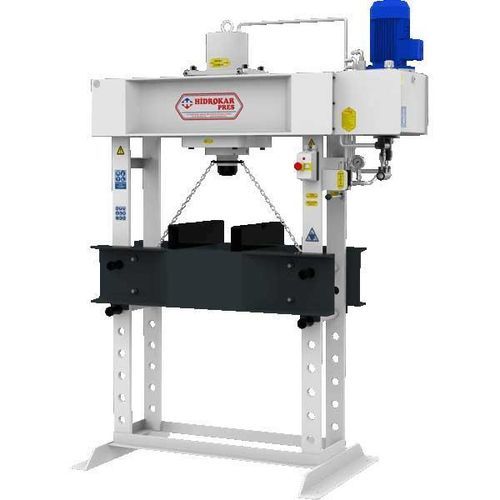

Hydraulic press HAP-S

rivetingstraighteningcompression

Overview
Hydraulic workshop presses are standard equipment in industrial workshops for pressing, bending, riveting, bearing extraction, straightening and similar tasks. Units are manufactured to customer requirements and can be supplied in various configurations and sizes. Standard range: press force 10-400 ton and table/work area 500-2050 mm.

Main features

• Sturdy steel construction
• Low-maintenance hydraulic unit
• Emergency stop button
• Control lever operation
• Pressure gauge
• Manual traveling cylinder (from 30 ton models)
• Lower table height adjustment mechanism
• Hand pump
• Hydraulic safety system
• Electrical safety system

Optional features

• Push-button control
• Manual ram stroke adjustment
• Toothed/geared traveling cylinder
• Reducer-equipped traveling cylinder
• V-block set
• Punch set
• Lower table working plate
• Light barrier
• Safety cage
• Safety cover

Technical specifications (examples)

• Press force range: 10 - 400 ton (standard models)
• Standard table/work area: 500 - 2050 mm (model dependent)
• Cylinder strokes commonly: 250 mm or 400 mm (depending on model)
• Motor power range (example models): 0.75 kW - 7.5 kW
• Pump flow range: approx. 2.3 l/min - 28 l/min (model dependent)
• Down and return speeds: vary by model (see model table for examples)
• Weight range: approx. 160 kg - 4750 kg (model dependent)
• Typical applications: pressing, bending, riveting, bearing removal, straightening in workshop environments
