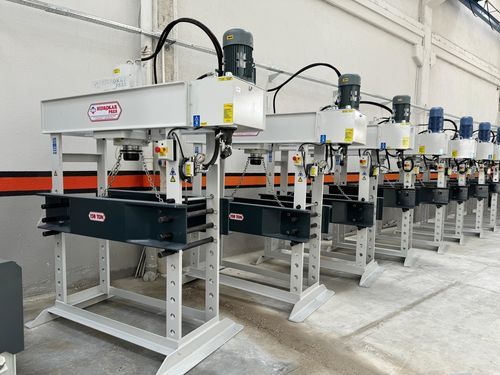

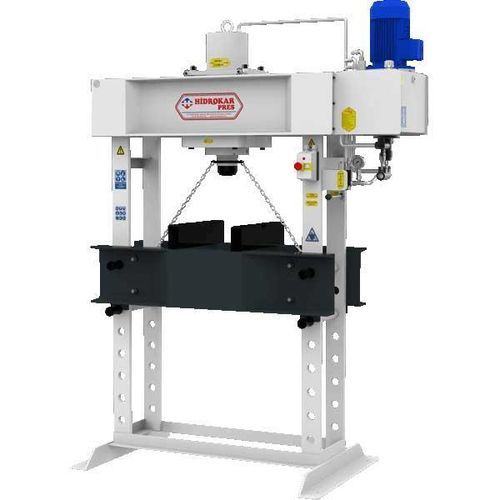

Hydraulic press HAP-S

straighteningcompressionbending

Overview
Typically found in many workshops, these presses are primary machines for compression, bending, riveting, bearing removal, straightening and similar operations. Production is customer-oriented and units can be manufactured in various capacities, dimensions and configurations on request. Standard production range: press force 10–400 ton and table usage area 500–2050 mm.

Main features

• Robust steel construction
• Hydraulic unit requiring minimal maintenance
• Emergency stop button
• Control via lever
• Pressure gauge
• Manually traversing cylinder (from 30 ton and above)
• Lower table height adjustment mechanism
• Hand pump
• Hydraulic safety system
• Electrical safety system

Optional features

• Push-button control
• Manual ram stroke adjustment
• Geared traversing cylinder
• Gearbox-driven traversing cylinder
• V-block set
• Punch set
• Lower table working plate
• Light barrier
• Safety cage
• Safety cover

Technical table (values per column; column order corresponds to TON heading)

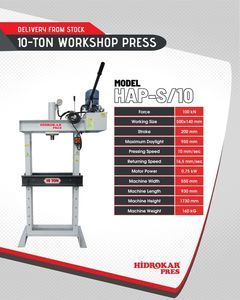

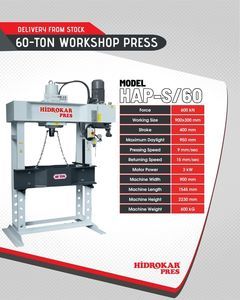

Press Force - TON: 10 | 20 | 30 | 60 | 80 | 100 | 100 | 120 | 150 | 150 | 200 | 200 | 250 | 300 | 400

Between Columns | D | mm | | | 550 | 550 | 700 | 900 | 950 | 1000 | 1550 | 1050 | 1250 | 2050 | 1500 | 2050 | 1500 | 1500 | 1500

Daylight Capacity | F | mm | | | 950 | 950 | 1100 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 950

In Width | E | mm | | | 140 | 180 | 250 | 300 | 300 | 380 | 500 | 350 | 440 | 550 | 400 | 600 | 450 | 550 | 550 | 550

Table Width | G | mm | | | 280 | 340 | 442 | 520 | 552 | 630 | 776 | 605 | 716 | 780 | 695 | 895 | 695 | 793 | 865

Cylinder Stroke | | mm | | | 250 | 250 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400

Motor Power | | kW | | | 0.75 | 0.75 | 1.5 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5

Pump Flow | | lt/min | | | 2.3 | 2.9 | 6.1 | 9 | 12 | 12 | 12 | 16 | 16 | 16 | 22 | 22 | 28 | 28 | 28

Down Speed | | m/s | | | 9.9 | 6.3 | 9.8 | 9 | 7.8 | 7 | 7 | 7.6 | 6 | 6 | 5.9 | 5.9 | 6.6 | 5.4 | 4.5

Return Speed | | m/s | | | 16.5 | 8.4 | 15.2 | 15 | 13.1 | 11 | 11 | 10.8 | 9 | 9 | 9 | 9 | 9 | 11.4 | 8.2 | 8.3

Width | C | m | | | 550 | 550 | 650 | 900 | 900 | 900 | 1000 | 1000 | 1000 | 1200 | 1100 | 1200 | 1100 | 1250 | 1600

Length | B | mm | | | 930 | 1040 | 1300 | 1545 | 1700 | 1700 | 2250 | 1860 | 2000 | 2800 | 2405 | 3000 | 2500 | 2600 | 2900

Height | A | mm | | | 1730 | 1740 | 2070 | 2230 | 2300 | 2320 | 2320 | 2285 | 2360 | 2360 | 2540 | 2540 | 2500 | 2500 | 2770

Weight | | kg | | | 160 | 250 | 360 | 560 | 800 | 810 | 1150 | 1150 | 1200 | 1700 | 2050 | 2650 | 2800 | 3300 | 4750

Characteristics / Technical specifications (summary)

• Press force range: 10–400 ton (standard production range)
• Standard table usage area: 500–2050 mm
• Cylinder stroke: many models with 400 mm (varies by model)
• Example motor power range: 0.75 kW–7.5 kW (depends on model)
• Example pump flow range: ~2.3 lt/min–28 lt/min (depends on model)
• Robust steel construction; hydraulic and electrical safety systems are standard
• Customizable with various options (push-button control, safety cage, light barrier, V-block set, etc.)
