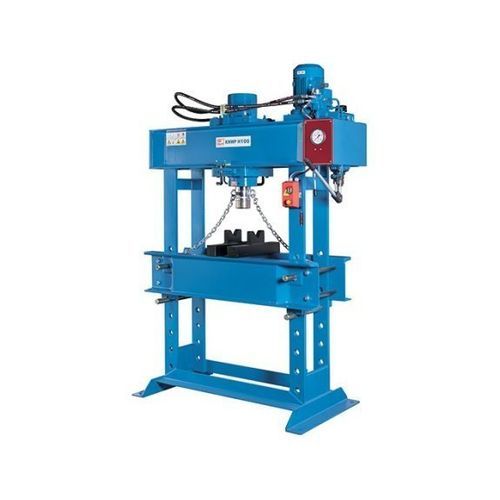

Hydraulic press KNWP H 100

motorizedstraighteningassembly

Product overview
This motorized hydraulic workshop press series features a torsion‑rigid gantry frame with an adjustable open support table. It is intended for pressing in/out bearings, assembly and straightening tasks, and material testing. The laterally movable working cylinder allows setup without relocating the workpiece. These presses are standard equipment for technical workshops and maintenance departments.

Highlights

• Motorized hydraulic drive
• Movable horizontal working cylinder
• Adjustable support table height
• Set of prismatic V‑blocks included

Product details

• Torsion‑stiff welded gantry frame made from thick‑walled sectional steel
• Heavy‑duty design for professional workshop use
• Suitable for a wide range of repair, assembly and straightening operations
• Finely adjustable press force for truing axles, supports and shafts
• Long piston stroke for removing and press‑fitting bearings and bushings
• Integrated pressure gauge provides continuous visibility of working pressure
• Motorized hydraulic unit for efficient operation
• Smooth horizontal adjustment of the working cylinder simplifies setup
• High‑quality components for reliable long‑term operation

Technical specifications — Working area
Working width: 1.020 mm
Frame through‑hole (clearance): 300 mm
Pressure force: 100 t
Operating pressure (max.): 400 bar
Stroke: 400 mm
Forward motion speed: 7,12 mm/s
Press speed: 7,12 mm/s
Return speed: 13,42 mm/s

Technical specifications — Drive capacity
Motor rating (hydraulic pump): 4 kW

Technical specifications — Measures and weights
Hydraulic tank volume: 11 l
Weight: 1.000 kg
Dimensions (L x W x H): 1.600 mm x 850 mm x 2.450 mm

Technical specifications — Dimensions
A: 2.450 mm
B: 850 mm
C: 1.260 mm
D: 1.020 mm
E: 300 mm
F: 1.600 mm

Standard equipment / Accessories

• Movable working cylinder (lateral adjustment)
• Height‑adjustable support table
• Set of V‑blocks / prismatic blocks
• Pressure gauge (manometer)
• Operator manual

Characteristics / technical specifications

• Model: KNWP H 100
• Pressure force: 100 t
• Stroke: 400 mm
• Working width: 1.020 mm
• Frame through‑hole (clearance): 300 mm
• Operating pressure (max.): 400 bar
• Motor rating (hydraulic pump): 4 kW
• Hydraulic tank volume: 11 l
• Press / forward speed: 7,12 mm/s
• Return speed: 13,42 mm/s
• Overall dimensions (L x W x H): 1.600 mm x 850 mm x 2.450 mm
• Weight: 1.000 kg
