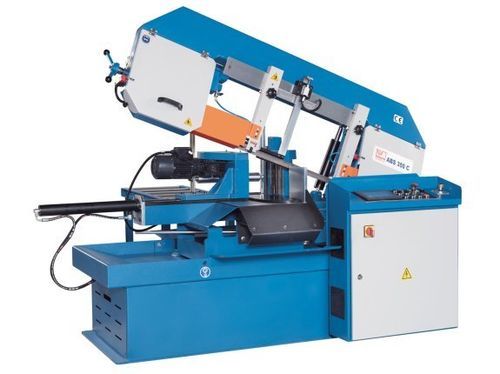

Band saw ABS 350 C

miterhorizontalfully-automatic

Product overview
The ABS 350 C is an automatic horizontal mitre band saw designed for continuous single-part and series production. It features driven feed rollers integrated in the clamping vise, a rigid saw frame and programmable touchscreen control to support repeatable, automated cutting cycles.

Highlights

• Vise with driven feed rollers for automated material advance
• Mitre cutting capability up to 45° to both sides
• Touchscreen control for easy programming
• Lift height limiter to reduce idle times
• Workpiece counter for continuous production
• Manual bundle clamping for cutting packs

Product details

• Fully automated horizontal mitre band saw suitable for solid materials, tubes and profiles
• Integrated driven rollers in the vise provide efficient automatic feeding, suitable for single and series production
• Heavy machine frame and vibration-damped saw arm for stable cutting performance
• Saw arm can be manually rotated up to 45° for mitre cuts
• Adjustable carbide blade guides ensure high vertical angle accuracy
• Saw arm stroke and workpiece clamping hydraulically operated
• Blade feed controlled via micro-adjustable hydraulic valve for consistent cuts
• Controls grouped on a stand-alone panel; touchscreen enables convenient automated programming
• Infinitely variable motor speed with continuous-operation idler gear drive to blade wheel
• Blade tension checkable on pressure gauge display; automatic band breakage control included
• High-performance coolant system and effective chip brush provided as standard
• Optional: additional roller conveyor and Minimal Quantity Lubrication (MQL) system

Standard equipment

• Automatic band break control
• Bundle vise
• Coolant system
• Hydraulic part clamping
• Operating tools
• Saw band
• Chip wiper/brush
• Feed roller table 1.2 m
• Operating manual

Optional equipment

• 3 m roller conveyor for ABS 350 C
• Chip conveyor
• Hydraulic saw blade tensioning
• Micro spray cooling system (MQL)
• Laser pointer
• Clamping force control at operator panel

Technical specifications

• Working height: 760 mm
• Cutting capacity 0° (round): 350 mm
• Cutting capacity 0° (flat) (L x W): 400 mm x 350 mm
• Cutting capacity 0° (square): 350 mm
• Cutting capacity +30° (round): 320 mm
• Cutting capacity +30° (flat): 400 mm x 230 mm
• Cutting capacity +30° (square): 350 mm
• Cutting capacity 45° (round): 320 mm
• Cutting capacity +45° (flat): 260 mm x 350 mm
• Cutting capacity +45° (square): 280 mm
• Cutting speed: 15 m/min - 125 m/min
• Motor rating main drive: 2.2 kW
• Motor rating hydraulic pump: 0.37 kW
• Motor rating coolant pump: 0.12 kW
• Blade dimensions: 4,160 mm x 34 mm x 1.1 mm
• Overall dimensions (L x W x H): 2.45 m x 0.92 m x 2.02 m
• Weight: 1,050 kg
