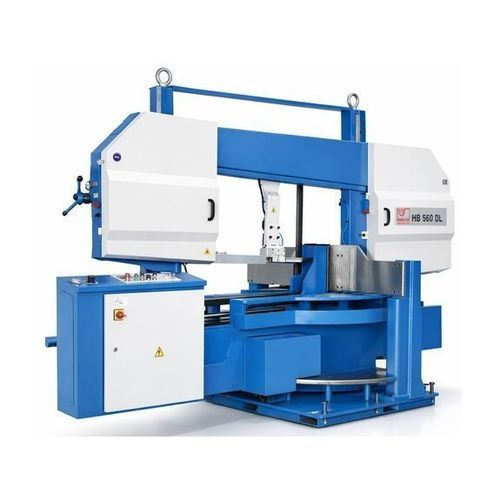

Band saw HB 560 DL

horizontalfor metalssemi-automatic

Product description
The HB 560 DL is a semi-automatic double-mitre band saw for precise, cost-effective series cutting of solid material, tubes and profiles. Its double-column construction, saw-arm swivel up to 60° and hydraulic workpiece clamping provide repeatable mitre and straight cuts with high process reliability and simple operation.

Highlights

• Mitre cuts up to 60° (+45° to −60°)
• Double-column guidance for high cutting accuracy
• Hydraulic workpiece clamping with pressure control
• Digital angle display for exact mitre adjustment

Design and construction
The machine features a torsion-resistant welded monoblock saw frame, linear guides for precise saw carriage movement, hydraulically controlled feed and an infinitely variable blade speed. The saw arm is swivelable for bilateral mitre cutting and includes a 3° tilt for improved cutting performance and blade life.

Equipment

• Hydraulic saw feed with cutting pressure regulation
• Hydraulic material clamping
• Automatic band break monitoring and automatic guide adjustment
• High-performance coolant system with fine filter element
• Infinitely variable feed speed and cutting force
• Hydraulic saw-frame feed with pressure control system (PAS)
• Optical stroke height limitation and pressure gauge for band tension

Application

• Metalworking and steel construction
• Mechanical engineering and manufacturing
• Batch mitre cutting of tubes, sections and solid material

Options

• Roller conveyors and bundle clamping systems
• Minimum quantity lubrication (MMS)
• Laser cut-line indicator
• Wide range of accessories for specific requirements

Standard equipment (selection)

• Mobile control unit
• Mechanical blade tensioning with hydraulic pressure gauge
• Bi-metal band saw blade
• Cooling system and chip brush
• Automatic blade guide adjustment and band break protection

Optional equipment (selection)

• 3 m roller
• Hydraulic blade tensioning (for HB 560 L)
• Minimum quantity cooling
• Laser pointer

Technical tables
Working area
Remaining length: 105 mm

Cutting capacities
Cutting capacity 0° (round): 560 mm
Cutting capacity 0° (square): 540 mm x 540 mm
Cutting capacity 0° (flat): 810 mm x 530 mm
45° (square) L/R: 520 mm x 520 mm
45° (round) L/R: 520 mm
45° (flat) L/R: 540 mm x 520 mm
(−) 60° (round/square): 330 mm / 330 mm x 330 mm
(−) 60° (flat): 540 mm x 330 mm
(+) 30° (square): 540 mm x 540 mm
(+) 30° (round): 560 mm
(+) 30° (flat): 450 mm x 660 mm
Blade speed: 15 m/min - 120 m/min

Drive capacity
Main drive, continuous load: 4 kW
Hydraulic pump motor: 1.1 kW
Coolant pump motor: 0.12 kW
Supply voltage: 400 V / 50 Hz

Measures and weights
Max blade length: 7,000 mm
Max blade width: 41 mm
Blade thickness: 1.3 mm
Overall dimensions (L x W x H): 3.85 m x 1.7 m x 2.45 m
Weight: approx. 3,250 kg

Technical characteristics

• Model: HB 560 DL
• Swivel range for mitre cuts: +45° to −60°
• Double-column construction for rigidity and accuracy
• Hydraulic clamping with adjustable pressure
• Digital angle display
• Infinitely variable blade speed 15–120 m/min
• Main motor: 4 kW; hydraulic pump: 1.1 kW; coolant pump: 0.12 kW
