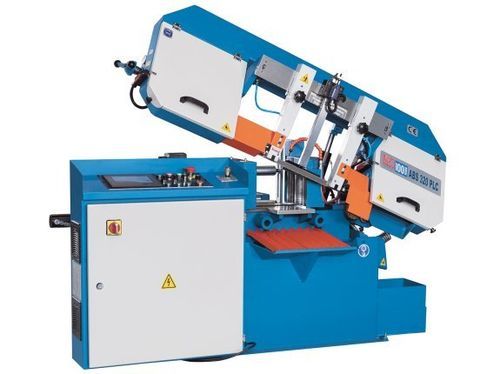

Band saw ABS 320 PLC

horizontalfor metalsfully-automatic

Product description The ABS 320 PLC is a fully automated horizontal band saw for single-cut and series production of solid materials, tubes and profiles. Automatic feed is provided by motorised rollers integrated in the clamping jaws. The PLC touchscreen simplifies machine setup and programme entry for automatic cutting cycles. The torsion-resistant saw frame and large drive wheels ensure stable straight cutting and reliable blade guidance.

Highlights

• PLC touchscreen for automatic feed and programme control
• Hydraulic workpiece clamping
• Bundling vise for bundle cutting
• Infinitely variable cutting speeds
• Integrated band-break control and high-performance coolant system

Cutting capacities
Cutting capacity 0° (round): 320 mm
Cutting capacity 0° (square): 320 mm
Cutting capacity 0° (flat) (length x width): 320 mm x 320 mm
Cutting speed: 15 m/min - 120 m/min
Working height: 640 mm

Drive capacity

• Main drive motor: 2.2 kW
• Hydraulic pump motor: 0.37 kW
• Coolant pump motor: 0.12 kW
• Feed motor: 0.25 kW

Measures and weights

• Blade dimensions: 3,660 mm x 27 mm x 0.9 mm
• Overall dimensions (L×W×H): 1.9 m × 0.85 m × 1.3 m
• Weight: 770 kg

Product details

• Fully automated horizontal band saw suitable for single and series production of solids, tubes and profiles
• Automatic workpiece feed via vise-integrated motorised rollers for precise and repeatable feeding
• User-friendly touchscreen PLC to enter cutting programmes and lengths for unattended operation
• Torsionally rigid saw frame for stability and reduced vibration
• Large drive and idler wheels to extend blade life
• Precise blade tensioning adjustable via integrated hydraulic pressure gauge
• High-precision carbide blade guides for excellent vertical angular accuracy
• Hydraulic unit powers saw frame stroke and workpiece clamping
• Blade feed controlled by a micro-adjustable hydraulic valve
• Optical change-over from rapid feed to work feed to reduce non-productive time
• Standard equipment includes band-break control, high-performance coolant system and bundling vise
• Optional accessories: motor-driven roller conveyors, MQL/micro spray, laser pointer, extended roller tables

Technical specifications

• Model: ABS 320 PLC
• Cutting capacity (round/square): 320 mm
• Cutting speed range: 15–120 m/min
• Working height: 640 mm
• Main drive motor: 2.2 kW
• Hydraulic pump motor: 0.37 kW
• Coolant pump motor: 0.12 kW
• Feed motor: 0.25 kW
• Blade dimensions: 3,660 mm x 27 mm x 0.9 mm
• Machine dimensions (L×W×H): 1.9 m × 0.85 m × 1.3 m
• Weight: 770 kg
• Standard features: PLC touchscreen, hydraulic clamping, bundling vise, coolant system, band-break control
