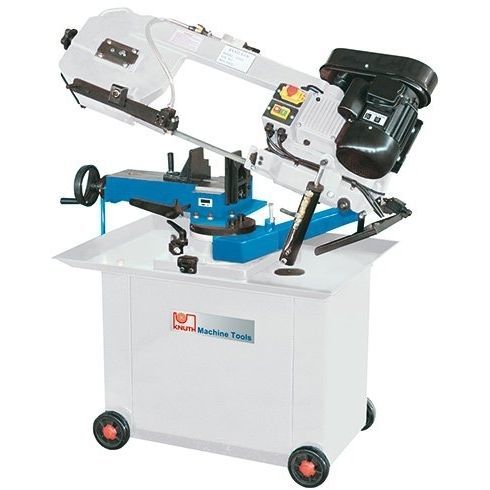

Band saw B 200 S

horizontalfor metalssemi-automatic

Product overview
The B 200 S semi-automatic horizontal bandsaw is the entry-level model for workshops and single-part production. The swiveling saw frame enables mitre cuts up to 45° on both sides. The saw frame feed is infinitely variable via a hydraulic valve and can be adjusted during cutting. The compact machine features a low-maintenance V-belt drive, a quick-action vise and an integrated coolant unit.

Highlights

• Saw frame swivels 45° both sides for angled cuts
• 45° swiveling vise for mitre cutting
• Compact, workshop-oriented footprint
• Hydraulic cylinder for infinitely variable saw frame feed (adjustable during operation)
• Coolant unit integrated in machine base

Technical specifications

• Cutting capacities 0° (round): 205 mm
• Cutting capacities 0° (square): 205 mm
• Cutting capacities 0° (flat) (L x W): 205 mm x 215 mm
• Cutting capacity 45° (round): 143 mm
• Cutting capacity 45° (flat) (L x W): 143 mm x 115 mm
• Belt speeds: 24 / 41 / 61 / 82 m/min
• Main drive power: 1.1 kW
• Blade dimensions: 2,360 mm x 20 mm x 0.9 mm
• Overall dimensions (L x W x H): 1.23 m x 0.65 m x 1.32 m
• Weight: 190 kg

Standard equipment

• Coolant system
• Quick-action vise
• Mobile base
• Saw band
• Operating manual

Additional features

• Thin saw blade reduces material removal and kerf
• Rigid construction for precise cuts and reduced blade tracking deviations
• Quiet, low-vibration operation suitable for workshop environments
• Pressure of the vise adjustable from 0 to maximum via hydraulic cylinder
