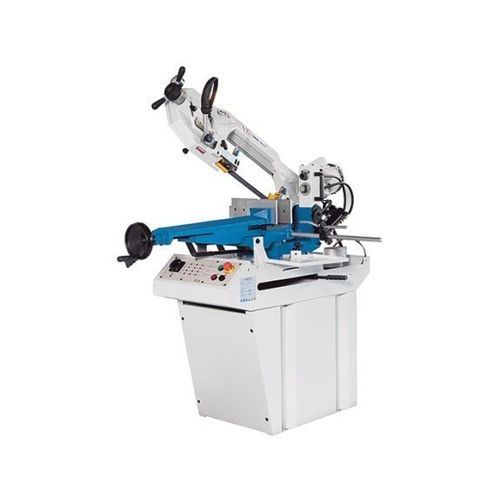

Band saw SBS 235

verticalhorizontalfor metals

Product overview
The SBS 235 is a compact semi-automatic horizontal band saw with a swiveling saw frame. The frame can be tilted 60° to the right and 45° to the left. Feed can be performed manually or via a valve-controlled hydraulic feed, making the machine suitable for precise workshop work and small-batch production.

Highlights

• One-piece grey cast-iron saw frame, torsion-resistant
• Rigid vise with long stroke and lateral adjustment
• High cutting capacity up to Ø225 mm (0° round)
• Compact footprint with included base
• Quick angle adjustment left and right

Product details

• Rigid vise with lateral slide, long stroke and extended guideways in the movable jaw segments
• Saw frame swivels 60° to the right and 45° to the left for miter cuts
• Stable blade guides with wide adjustment range for small and large cross-sections
• Carbide jaw inserts combined with adjustable ball-bearing guides for precision cuts
• Wide bi-metal blade for increased stability during heavy cutting
• Manual feed option for sensitive workpiece characteristics
• Hardened, polished helical gear with large bronze drive wheel for long service life
• Quiet operation, short machining times and easy handling for improved workshop productivity
• High-capacity coolant system supplied as standard

Additional features

• Hydraulic quick-action clamping fixture for consistent clamping force to the last cut (option/standard depending on configuration)
• Infinitely variable blade speed for optimal machining of various materials and profiles (45 / 90 m/min or variable)
• Integrated hydraulics lift the saw frame to the home position at the end of each cut for easy handling

Cutting capacities
Cutting capacity 0° (round): 225 mm
Cutting capacity 0° (square): 180 mm
Cutting capacity 0° (flat L x W): 150 mm x 245 mm
Cutting capacity 45° (square) L: 145 mm
Cutting capacity 45° (flat L x W): 145 mm x 190 mm
Cutting capacity 45° (round) L: 145 mm
Cutting capacity 45° (square) R: 120 mm
Cutting capacity 45° (round) R: 120 mm
Cutting capacity 45° (flat) R (L x W): 120 mm x 120 mm
Cutting capacity 60° R (round): 90 mm
Cutting capacity 60° R (square): 90 mm
Cutting capacity 60° R (flat L x W): 90 mm x 115 mm
Cutting speed: 45 / 90 m/min (depending on version)

Drive and dimensions
Motor rating main drive: 1.1 kW
Saw blade dimensions: 2,645 mm x 27 mm x 0.9 mm
Overall dimensions (L x W x H): 1.46 m x 0.73 m x 1.06 m
Weight: 295 kg
