Band saw ABS 440 S NC

miterhorizontalfor metals

Overview

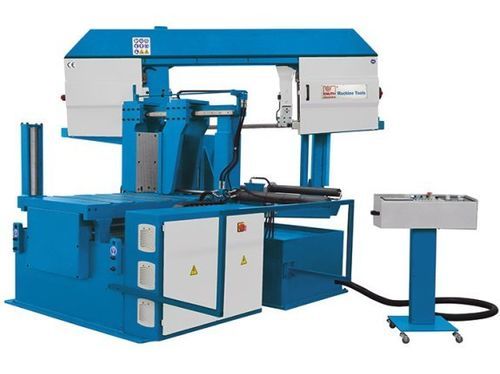

The ABS 440 S NC is a high-performance horizontal band saw for production environments. Featuring a double-column design, servo material feed with ball-screw drive and an Omron touchscreen NC control, it delivers precise positioning and repeatability for serial cutting of solids, tubes and profiles. Hydraulic workpiece clamping and optional hydraulic bundle clamping increase handling reliability.

Highlights

• Double-column frame with precise linear guidance
• Mitre cutting with hydraulic clamping and digital angle display
• Omron touchscreen NC control, programmable (30 programs × 50 steps)
• Servo feed with ball-screw drive, positioning repeatability ±0.2 mm
• Optical stroke-height control and automated rapid-to-workfeed changeover

Product Details

• Fully automatic horizontal band saw series designed for series production with mitre cuts in solid materials, tubes and profiles
• Workpiece feed driven by a servo motor with preloaded ball screws for high precision and long-term repeatability
• Combination of linear guides and box ways for low maintenance and high robustness in continuous production
• Saw frame (including guide frame) manually rotatable up to 60° and locked by hydraulic clamping; automated mode supports mitre angles up to 45°
• 3° saw frame inclination on the cutting axis to improve cutting capacity and saw blade life
• Hydraulically controlled fine feed of the saw frame and regulated clamping force via hydraulic unit
• Sturdy blade guides for vertical angular accuracy and hydraulic pressure gauge for blade tension verification
• Standard features: automatic band break detection, high-performance coolant system, chip brush; options include MQL, chip conveyor, roller tables, laser pointer, hydraulic bundle clamping and micro-spray cooling

Technical Specifications
Working area
Minimum cut length: 15 mm
Remaining length: 190 mm

Cutting Capacities
Feed per single stroke (max.): 700 mm
Cutting speed: 15 m/min - 120 m/min
Cutting capacity 0° (round): 440 mm
Cutting capacity 0° (flat) (length x width): 610 mm x 440 mm
Cutting capacity 0° (square): 440 mm
Cutting capacity 30° (round): 440 mm
Cutting capacity 30° (flat) (length x width): 540 mm x 440 mm
Cutting capacity 30° (square): 440 mm
Cutting capacity 45° (round): 440 mm
Cutting capacity 45° (flat) (length x width): 440 mm x 400 mm
Cutting capacity 45° (square): 400 mm
Max. feed length (multiple strokes): 9.999 mm

Accuracies
Positioning accuracy (multiple strokes): ±0.2 mm

Cutting capacity in semi-automatic mode
Cutting capacity 60° (round): 310 mm
Cutting capacity 60° (flat) (length x width): 245 mm x 440 mm
Cutting capacity 60° (square): 245 mm

Drive capacity
Motor rating main drive: 4 kW
Motor rating hydraulic pump: 2.2 kW
Motor rating coolant pump: 0.12 kW

Measures and weights
Blade dimensions: 6,300 mm x 41 mm x 1.3 mm
Overall dimensions (L x W x H): 3.0 m x 2.25 m x 2.05 m
Weight: approx. 3,600 kg

Technical features

• Model: ABS 440 S NC
• Machine type: fully automatic horizontal band saw, double-column design
• Controller: Omron touchscreen NC, programmable (30 programs × 50 steps)
• Feed system: servo motor with preloaded ball screws; positioning repeatability ±0.2 mm
• Standard equipment: hydraulic workpiece clamping, optical stroke-height control, automatic band break control, coolant system, chip brush, mechanical blade tensioning with hydraulic gauge
• Options: MQL, hydraulic bundle clamping, chip conveyor, roller tables, laser pointer, hydraulic blade tensioning, micro-spray cooling
