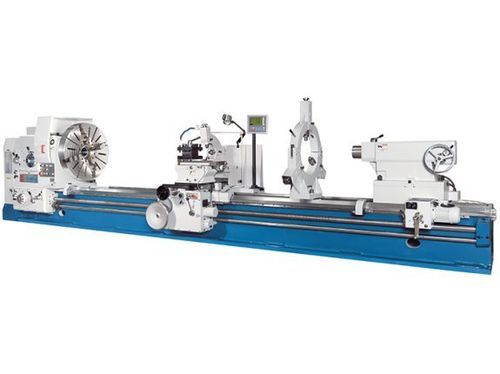

Conventional lathe DL E Heavy 620/3000

horizontal3-axisfor long workpieces

Description
The DL E Heavy 620/3000 is a conventional heavy-duty lathe designed for machining large diameters and long workpieces. It supports workpiece lengths up to 3,000 mm and turning diameters over the bed up to 1,250 mm. The heavily ribbed, wide machine bed and oversized components are engineered to carry high part weights while maintaining stability for heavy turning operations.

Highlights

• Spindle bore: 130 mm
• Workpiece length (max): 3,000 mm
• Main drive 22 kW (version shown)
• Rapid traverse and separate rapid feed motors for X/Z
• Delivered with mounted 3-axis position indicator

Working area
Workpiece length (max.): 3.000 mm
Turning diameter over bed: 1.250 mm
Turning-Ø over support: 900 mm
Workpiece weight (max.): 6.000 kg
Bed width: 755 mm
Max. weight capacity (between centers): 6.000 kg
Max. weight capacity (on chuck): 1.500 kg

Travels
Travel X-axis: 630 mm
Travel Z-axis: 2.800 mm
Travel Z1-axis: 300 mm
Swing range of top slide: ± 180°

Headstock
Spindle speeds (right): 3,15 1/min - 315 1/min
Spindle speeds (left): 4 1/min - 315 1/min
Spindle bore: 130 mm
Spindle mount: ISO A2-15

Rapid feed
Rapid feed X-axis: 1.870 mm/min
Rapid feed Z-axis: 3.740 mm/min

Feed
Feed X-axis: 0,064 mm/R - 12 mm/R
Feed Z-axis: 0,032 mm/R - 6 mm/R
Feed Z1-axis: 0,016 mm/R - 3 mm/R

Threading
Threading, metric: 1 mm - 120 mm
Threading, diametric: (42) 30 - 1/4 DP
Threading, module: 0,5 mm - 60 mm
Threading, whitworth: (48) 0,5 - 60 TPI

Tailstock
Tailstock quill diameter: 160 mm
Tailstock quill taper: metric 80
Tailstock quill stroke: 300 mm
Tailstock traverse adjustment: ± 2,5 mm

Drive capacity
Motor rating main drive: 22 kW

Measures and weights
Overall dimensions (length x width x height): 6,1 m x 1,88 m x 1,92 m
Weight: 11.550 kg

Standard equipment

• 22 kW main drive motor
• Heavy-duty cast-iron body with ribbed bed
• Induction hardened and ground guideways
• Sturdy multi-disk clutch for headstock drive
• Separate rapid feed motors for X and Z
• Joystick control for X and Z mounted on support
• Motorized tailstock positioning (models ≥ 3.000 mm)
• Large spindle bearings
• Completely assembled 3-axis position indicator
• Overload clutch enclosed in apron

Optional equipment (examples)

• 3-axis position indicator X.Pos 3.2
• 4-jaw face plate chuck Ø 1000 mm
• Coolant system
• Steady rest 50-590 mm
• Follow rest 50-220 mm
• Motorised tailstock
• LED work lamp
• Center points and reducing sleeves
• Foundation bolts and central lubrication
• Operating tools and manual

Notes on position indicator (standard included)

• Improved machining accuracy and repeatability
• Resolution: 0.01 / 0.005 mm
• Separate and differential/cumulative display modes for Z0 and Z1
• Hole circle calculations, calculator and tool memory (10)
• Radius/diameter toggle, mm/inch conversion
• Operator-specific functions and ergonomic keypad
