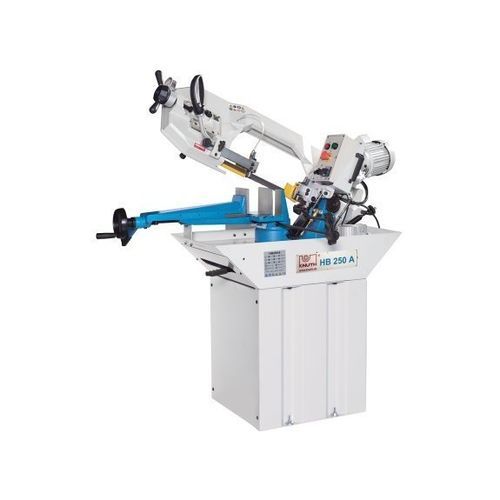

Band saw HB 250 A

horizontalfor metalsautomatic

Overview
The compact horizontal band saw with a one-piece grey cast-iron saw frame is designed for mitre cuts and for reliable use in workshops and industrial maintenance settings.

Highlights

• One-piece grey cast-iron saw frame for structural rigidity
• Two selectable belt speeds for cutting optimization (40 / 90 m/min)
• Quick-action clamping vise for fast workpiece fixation

Standard equipment

• 1 saw blade
• Coolant system
• Base/stand
• Hydraulic cylinder for saw frame feed/support pressure
• User manual
• Quick-action clamping vise

Product details

• Mitre cutting by swiveling the saw frame — the operator moves the frame, not the material
• Hydraulic cylinder provides infinitely variable support pressure and saw frame feed (models HB 210 A / HB 250 A)
• Quick-action vise for secure and rapid clamping

Working area
Working height: 910 mm

Cutting capacities
Cutting capacity 0° (round): 225 mm
Cutting capacity 0° (flat) (length x width): 245 mm x 150 mm
Cutting capacity 45° (round): 145 mm
Cutting capacity 45° (flat) (length x width): 190 mm x 150 mm
Cutting capacity 60° (round): 90 mm
Belt speed: 40 / 90 m/min

Drive capacity
Main motor rating: 1.1 kW

Dimensions and weight
Overall dimensions (L x W x H): 1.36 m x 0.58 m x 0.9 m
Weight: 185 kg

Technical specifications

• Model: HB 250 A
• Brand: KNUTH
• Working height: 910 mm
• Cutting capacities (0° round / 0° flat): 225 mm / 245 x 150 mm
• Cutting capacities (45° round / 45° flat): 145 mm / 190 x 150 mm
• Cutting capacity 60° (round): 90 mm
• Belt speeds: 40 m/min and 90 m/min
• Main motor power: 1.1 kW
• Overall dimensions (L x W x H): 1.36 m x 0.58 m x 0.9 m
• Weight: 185 kg
• One-piece grey cast-iron saw frame
• Hydraulic saw frame feed/support pressure (HB 210 A / HB 250 A)
• Quick-action clamping vise
