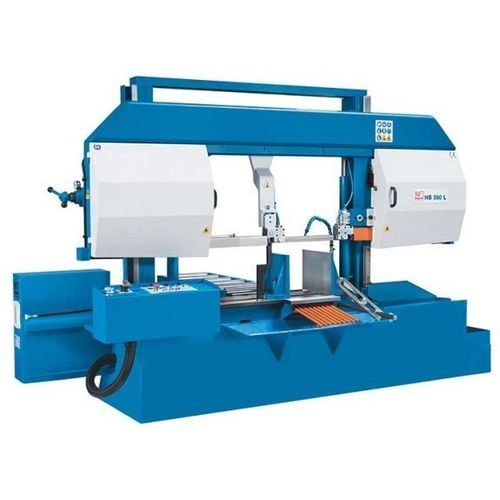

Band saw HB 560 L

horizontalfor steelfor cast iron

Product description
The HB 560 L is a semi-automatic horizontal band saw designed for heavy-duty cutting of steel, cast iron and other solid materials. The machine features a rigid dual-column construction with large linear guides to minimize vibration and ensure repeatable, precise cuts. The hydraulic saw frame feed and adjustable blade speed make the machine suitable for a wide range of sections and solid stock.

Highlights

• Dual-column design with linear guide
• Semi-automatic operation with optical stroke-height sensing
• 45° swiveling vise for mitre cuts
• Infinitely variable cutting speed (20–100 m/min)
• Hydraulic workpiece clamping standard

Cutting capacities
Cutting capacity 0° (round): 560 mm
Cutting capacity 0° (square): 560 mm
Cutting capacity 0° (flat) (length x width): 750 mm x 550 mm
Cutting capacity 45° (round): 410 mm
Cutting capacity 45° (square): 410 mm
Cutting capacity 45° (flat) (length x width): 410 mm x 550 mm
Cutting speed range: 20 m/min - 100 m/min

Drive capacity
Main drive motor: 4 kW
Hydraulic pump motor: 1.1 kW
Coolant pump motor: 0.12 kW

Measures and weights
Blade dimensions: 6000 mm x 41 mm x 1.3 mm
Overall dimensions (L x W x H): 3.4 m x 1.15 m x 2.25 m
Weight: 1,750 kg

Product details
Suitable for precise sawing of profiles and solid material such as steel and aluminum.

• Infinitely variable blade speeds from 20 to 100 m/min
• Low-maintenance motors for continuous operation
• Hydraulic workpiece clamping across the range
• Pressure gauge for accurate blade tensioning to extend blade life
• Removable coolant reservoir for simplified maintenance

Linear guide technology

• Torsion-resistant steel frame with dual-column linear guidance for high stability and vibration damping
• Mono-frame saw head running on oversized linear guides
• Hydraulic saw frame feed with PAS pressure-regulating system for optimized feed and cutting power control
• Control valve with material/profile markings for fast setup
• Optical workpiece height detection for automatic rapid empty runs and timed transition to work feed

Standard equipment

• Bimetal band saw blade
• Mechanical blade tensioning with hydraulic pressure gauge
• Hydraulic part clamping (swiveling vise)
• Automatic stroke height adjustment (optical sensor)
• 1 m feed roller table
• PAS feed regulation system
• Coolant system with removable tank
• Operating manual

Optional equipment

• 3 m roller table
• 3 m motorized roller table
• 3 m or 6 m roller table with length stop & digital readout
• Hydraulic top clamping for bundles
• Chip conveyor
• Turn table
• Hydraulic blade tensioning
• Minimum quantity lubrication (MQL) / micro spray cooling
• Laser pointer
• Clamping force control at operator panel

Technical specifications

• Model: HB 560 L
• Series: HB-L semi-automatic horizontal band saws
• Cutting speed: 20 - 100 m/min
• Cutting capacities: round 560 mm (0°), square 560 mm (0°); 45° round/square 410 mm
• Blade dimensions: 6000 x 41 x 1.3 mm
• Main drive motor: 4 kW
• Hydraulic pump motor: 1.1 kW
• Coolant pump motor: 0.12 kW
• Overall dimensions (L x W x H): 3.4 m x 1.15 m x 2.25 m
• Weight: 1,750 kg
• SKU: 152811
