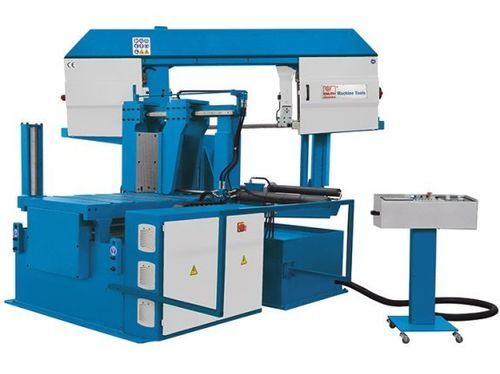

Band saw ABS 540 S NC

horizontalfor metalsfully-automatic

Description
The ABS 540 S NC is a fully automated horizontal production band saw with a dual-column design for high-volume cutting of solids, tubes and profiles. Material feed is driven by a servo motor with preloaded ball-screw and measurement system, delivering positioning and repeat accuracy of ±0.2 mm. The Omron touchscreen controller stores up to 30 programs with 50 steps each. Optional hydraulic bundle clamping and other tooling options increase application flexibility. Workpiece clamping is hydraulic; mitre angle is set manually and readable on a digital display.

Highlights

• Dual-column construction with precise linear guidance
• Mitre cutting with hydraulic workpiece clamping and digital angle readout
• Omron touchscreen controller for fast programming (30 programs × 50 steps)
• Servo-driven material feed for high positional accuracy ±0.2 mm
• Automatic stroke-height control with optical sensor

Working area
Minimum cut length: 15 mm
Remaining length: 190 mm

Cutting capacities (selected)
Feed per single stroke (max.): 700 mm
Cutting speed: 15 m/min - 120 m/min
Cutting capacity 0° (round): 540 mm
Cutting capacity 0° (flat L x W): 690 mm x 540 mm
Cutting capacity 0° (square): 540 mm
Cutting capacity 30° (round): 540 mm
Cutting capacity 30° (flat L x W): 550 mm x 540 mm
Cutting capacity 30° (square): 540 mm
Cutting capacity 45° (round): 470 mm
Cutting capacity 45° (flat L x W): 410 mm x 540 mm
Cutting capacity 45° (square): 410 mm
Max. feed length (multiple strokes): 9,999 mm

Accuracies
Positioning / repeat accuracy (multiple strokes): ±0.2 mm

Cutting capacity in semi-automatic mode
Cutting capacity 60° (round): 250 mm
Cutting capacity 60° (flat L x W): 240 mm x 540 mm
Cutting capacity 60° (square): 240 mm

Drive capacity
Main drive motor: 4 kW
Hydraulic pump motor: 2.2 kW
Coolant pump motor: 0.12 kW

Measures and weights
Blade dimensions: 6000 mm x 41 mm x 1.3 mm
Overall dimensions (L x W x H): 3.00 m x 2.42 m x 2.25 m
Weight (approx.): 4,190 kg

Product details / Features

• Fully automated horizontal band saw series with parallel guiding system, suited for series production with mitre cuts in solids, tubes and profiles
• Servo feed with preloaded ball screws for high repeatability and low backlash
• Combination of linear guides and box ways for low maintenance and long service life under heavy production
• Saw frame rotatable manually up to 60° and fixed via hydraulic clamping; automated mitre mode up to 45°
• Saw frame inclined 3° on cutting axis to increase cutting capacity and blade life
• Rigid blade guides for vertical angular accuracy; blade tension check via gauge
• Automatic band breakage detection, high-performance coolant system and chip brush as standard
• Optional MQL, hydraulic bundle clamping, conveyors and laser pointer

Controller and Programming
Omron touchscreen NC control with intuitive operator panel. High-precision servo feed and measurement system. Storage for up to 30 jobs with 50 steps each for repeatable series production.

Technical specifications (summary)

• Model: ABS 540 S NC
• Controller: Omron touchscreen NC (30 programs × 50 steps)
• Positioning / repeat accuracy: ±0.2 mm
• Servo-fed material feed with preloaded ball screw
• Cutting speed range: 15–120 m/min
• Main drive power: 4 kW
• Hydraulic pump power: 2.2 kW
• Coolant pump power: 0.12 kW
• Blade size: 6000 x 41 x 1.3 mm
• Max single-stroke feed: 700 mm; max multiple-stroke feed: 9,999 mm
• Typical cutting examples: 0° round 540 mm; 0° flat 690 x 540 mm; 45° round 470 mm
