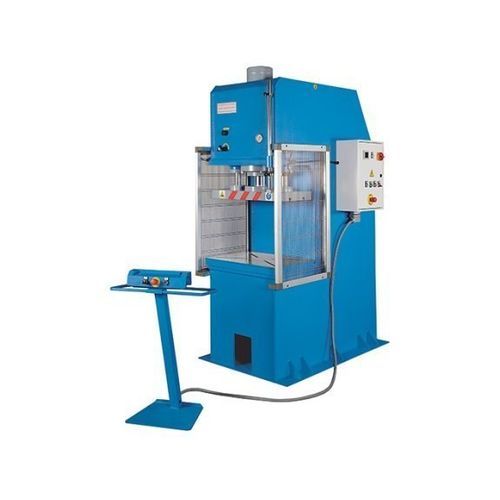

Hydraulic press HPK 150 A

testformingfor production

Overview
The HPK A series are C-frame hydraulic presses designed for deep drawing, forming and notching applications. Manufactured in Europe, components and assemblies meet stringent quality standards. Available forces range from 40 to 200 t. The series features large ram plates and a work table with T‑slots for tool and fixture mounting. Mobile two‑hand control ensures operator safety and stroke travel is set with adjustable limit stops. Customized configurations are available on request.

Highlights

• C-frame design for versatile press applications
• Manufactured in Europe
• Suitable for testing, prototyping and series production
• Industry 4.0 integration possible
• Customer-specific solutions available

Product Details

• Robust welded C-frame steel construction sized for maximum machine force
• Large ram plate and work table to accommodate large tools or multiple setups
• Flexible stroke distance/time control for a wide range of processes
• Powerful hydraulic cylinder with two self‑lubricating circular guides for precise, uniform ram feed
• Precision‑machined cylinder surfaces and high‑quality seals for low wear and long service life
• Quick stroke length adjustment via easy‑to‑set mechanical stops
• Space‑saving hydraulic unit installed accessibly inside the frame
• 2‑stage hydraulic pump for fast rapid feed and optimized working speed
• Ram plate and work table equipped with T‑slots for secure tool clamping
• Mobile control panel for flexible operation; additional controls integrated in the control cabinet
• Construction and components comply with European safety guidelines and strict standards

Technical specifications

• Press force: 150 t
• Table dimensions: 900 mm x 600 mm
• Stroke: 500 mm
• Ram-plate size: 800 mm x 400 mm
• Throat depth: 300 mm
• Working stroke speed: 3 mm/s
• Rapid feed: 20 mm/s
• Motor rating: 4 kW
• Overall dimensions (L x W x H): 2,2 m x 1,5 m x 3 m
• Weight: 5.500 kg

Standard equipment

• Two‑hand control panel
• Adjustable mechanical stops
• Pressure gauge
• Ram plate with 2 guides and T‑slots
• Automatic operation mode
• Automatic return
• Siemens PLC
• 2‑stage hydraulic pump with automatic shifting
• Start/stop push button or foot switch
• Operating time timer
• User manual

Optional equipment

• Light curtain L = 1.000 mm
• Upgrade to Siemens KTP 700 Basic digital control
• Upgrade from 2 to 4 guide rails
• Press stroke counter
• Oil cooler with decompression valve
• Decompression valve
