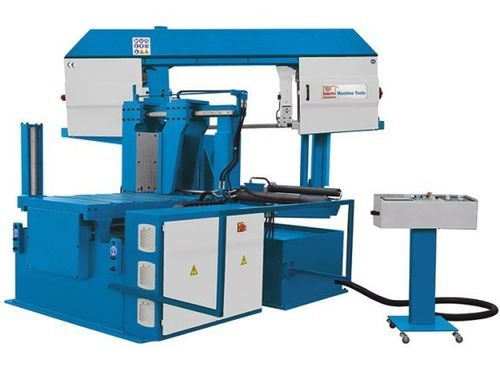

Band saw ABS 325 S NC

miterhorizontalfor metals

Overview
The ABS 325 S NC is a production horizontal mitre bandsaw with double-column construction, servo material feed and Omron touchscreen NC control. It is designed for series processing of solid materials, tubes and profiles and supports fully automatic and semi-automatic mitre modes with hydraulic clamping and advanced tool-life and productivity features.

Key features

• Double-column frame with precision linear guidance
• Mitre cutting with hydraulic workpiece clamping and digital angle display
• Omron touchscreen NC controller for fast programming and setup
• Servo-driven material feed with high positioning/repeat accuracy ±0.2 mm
• Automated stroke-height control with optical sensor and controlled changeover from rapid feed to work feed
• Hydraulically controlled saw-frame micro-feed and hydraulic clamping unit
• Manual saw-frame rotation up to 60° with hydraulic fixation; fully automatic mitre mode to 45°, semi-automatic to 60°
• 3° saw-frame inclination on the cutting axis to improve cutting capacity and blade life
• Rigid blade guides for vertical angular accuracy and mechanical blade tensioning with hydraulic pressure gauge
• High-performance coolant system and blade-cleaning chip brush; options include MQL and hydraulic bundle clamping

Standard equipment

• Omron NC control with touchscreen (up to 30 programs × 50 steps)
• Automatic workpiece feed (servo) with preloaded ball screws
• Hydraulic part clamping and hydraulic cutting-angle clamping
• Optical stroke-height adjustment (stroke-height control)
• Standard saw-band (bimetal blade) and mechanical blade tensioning with hydraulic pressure gauge
• Blade-cleaning brush, coolant system, operating tools and operator manual

Optional equipment

• Hydraulic bundle clamping
• Roller table extensions (e.g. 3 m)
• Hydraulic saw-blade tensioning
• Clamping-force control at operator panel
• Chip conveyor for ABS S 325 NC
• Micro-spray cooling (MQL)
• Laser pointer for positioning

Technical specifications (table)
Working area: Minimum cut length: 15 mm
Working area: Remaining length: 275 mm

Cutting capacities: Feed per single stroke (max.): 700 mm
Cutting capacities: Cutting speed: 15 m/min - 120 m/min
Cutting capacities: Cutting capacity 0° (round): 325 mm
Cutting capacities: Cutting capacity 0° (flat): 400 mm x 325 mm
Cutting capacities: Cutting capacity 0° (square): 325 mm
Cutting capacities: Cutting capacity 30° (round): 325 mm
Cutting capacities: Cutting capacity 30° (flat): 360 mm x 325 mm
Cutting capacities: Cutting capacity 30° (square): 325 mm
Cutting capacities: Cutting capacity 45° (round): 300 mm
Cutting capacities: Cutting capacity 45° (flat): 260 mm x 325 mm
Cutting capacities: Cutting capacity 45° (square): 260 mm
Cutting capacities: Max. feed length (multiple strokes): 9.999 mm

Accuracies: Positioning accuracy (multiple strokes): ±0.2 mm

Cutting capacity in semi-automatic mode: 60° (round): 190 mm
Cutting capacity in semi-automatic mode: 60° (flat): 140 mm x 325 mm
Cutting capacity in semi-automatic mode: 60° (square): 140 mm

Drive capacity: Motor rating main drive: 2,2 kW
Drive capacity: Motor rating hydraulic pump: 1,5 kW
Drive capacity: Motor rating coolant pump: 0,12 kW

Measures and weights: Blade dimensions: 4.900 mm x 34 mm x 1,1 mm
Measures and weights: Overall dimensions (L x W x H): 2,31 m x 2,15 m x 1,65 m
Measures and weights: Weight: 1.860 kg

Additional product details

• Saw frame and guide frame are manually rotatable and fixed hydraulically; automated mitre cuts up to 45° (fully automatic) and up to 60° (semi-automatic)
• Servo-driven material feed with ball screws provides precise positioning and repeatability
• Combination of linear guides and box ways for robustness, low maintenance and long life in heavy production
• 3° inclination of the saw frame improves cutting performance and blade life
• Infinitely variable drive speeds via continuous-operation idler gear to the drive wheel
• Optical sensors control stroke height and changeover between rapid and work feed to reduce downtime
• Standard high-performance coolant and options for enhanced cooling/lubrication (MQL)

Technical data

• Model: ABS 325 S NC
• Type: Automatic mitre horizontal bandsaw (double-column)
• Controller: Omron touchscreen NC
• Positioning accuracy: ±0.2 mm (multiple strokes)
• Cutting speed range: 15 - 120 m/min
• Maximum single stroke feed: 700 mm
• Selected cutting capacities: 0° round 325 mm; 0° flat 400 x 325 mm; 45° round 300 mm; 60° round (semi-auto) 190 mm
• Blade dimensions: 4.900 mm x 34 mm x 1,1 mm
• Drive ratings: main 2,2 kW; hydraulic pump 1,5 kW; coolant pump 0,12 kW
• Overall size (L x W x H): 2,31 m x 2,15 m x 1,65 m
• Machine weight: 1.860 kg
