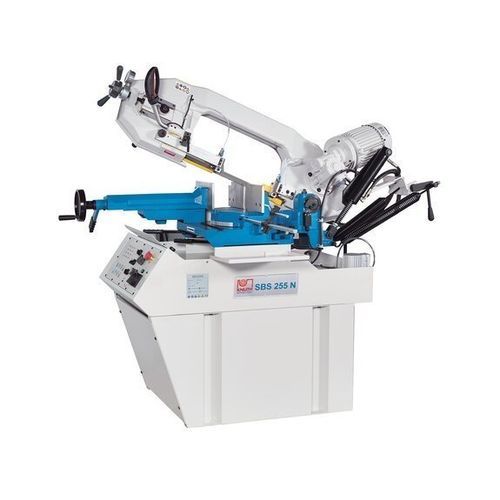

Band saw SBS 255 N

verticalhorizontalfor metals

Description
The SBS 255 N is a horizontal workshop band saw featuring a one-piece cast-iron swivel frame. The frame swivels 60° to the right and 45° to the left. Feed can be applied manually or via a hydraulic valve-controlled feed for controlled, repeatable cutting—suitable for efficient machining of small batches.

Highlights

• One-piece cast-iron saw frame
• Rigid vise with long stroke
• High cutting capacity (up to 255 mm)
• Compact footprint
• Quick-angle adjustment left and right

Technical specs - Cutting Capacities
Cutting capacity 0° (round): 255 mm
Cutting capacity 0° (square): 255 mm
Cutting capacity 0° (flat) (length x width): 315 mm x 160 mm
Cutting capacity 45° (square) L: 180 mm
Cutting capacity 45° (flat) (length x width): 140 mm x 220 mm
Cutting capacity 45° (round) L: 180 mm
Cutting capacity 45° (square) R: 170 mm
Cutting capacity 45° (round) R: 195 mm
Cutting capacity 45° (flat) R (length x width): 140 mm x 220 mm
Cutting capacity 60° R (round): 115 mm
Cutting capacity 60° R (square): 115 mm
Cutting capacity 60° R (flat) (length x width): 115 mm x 160 mm
Cutting speed: 35 / 70 m/min

Technical specs - Drive capacity
Main motor power: 1.5 kW

Technical specs - Measures and weights
Saw blade dimensions: 2.750 mm x 27 mm x 0.9 mm
Overall dimensions (L x W x H): 1.73 m x 0.73 m x 1.1 m
Weight: 380 kg

Product details

• Rigid vise with lateral slide, long stroke and long guideways in the movable jaw segments
• Torsion-proof one-piece cast-iron saw frame, swivels 60° right and 45° left
• Rigid blade guides with wide adjustment range for varying cross-sections
• Carbide jaws combined with adjustable ball-bearing guides ensure precision cuts
• Wide bi-metal blade for stability during heavy cutting
• Manual feed option for sensitive workpieces
• Hardened, polished helical gear with large bronze drive wheel for long service life
• Quiet operation, short cycle times and easy handling
• Motor designed for continuous operation
• High-capacity integrated coolant system included
• Includes base
• Hydraulic quick-action clamping for constant clamping force in series production
• Infinitely variable blade speed for optimal machining of various materials and profiles
• Integrated hydraulics lift the saw frame to the home position at the end of the cut

Standard equipment

• Saw blade
• Coolant system
• Base
• Pressure gauge for blade tensioning
• Hydraulic cylinder for saw frame
• Operating manual
