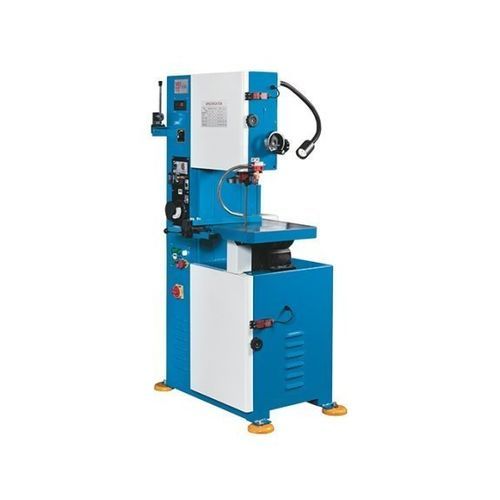

Band saw VB 300 A

verticalfor steelmanual actuation

Description
A vertical band saw designed for steel workshops. The VB 300 A handles sawing, notching and separating external and internal contours with a rigid steel frame, a stable work table and adjustable band guides.

Highlights

• Swiveling work table for angled cuts
• Infinitely variable blade speed (10–180 m/min)
• Adjustable saw blade guides with carbide jaws
• Integrated blade welder with shearing and grinding unit

Product Details

• Torsionally rigid steel frame for stable operation
• Functional design with easy handling across the VB A series
• Support table swivels left and right for angled sawing
• Electronically controlled blade speed with large digital display
• Carbide-jawed blade guides adjustable to different blade widths
• Drive and idler wheels with replaceable plastic covers
• Micro-adjustable blade tension via accessible hand-wheel
• Standard minimum-quantity coolant system to extend blade life and reduce machining time and cost

Technical Specs (tabular view)
Working area
Table dimensions: 500 mm x 400 mm x 890 mm
Table with angle adjustment (l/r): 15/45 deg

Cutting Capacities
Cutting capacity height x throat: 185 mm x 310 mm
Cutting speed: 10 m/min - 180 m/min

Drive capacity
Motor rating main drive: 0.55 kW
Motor rating grinding: 0.09 kW
Blade welder capacity: 2.4 kVA

Measures and weights
Blade width: 3 mm - 16 mm
Blade length: 2,835 mm - 2,915 mm
Overall dimensions (length x width x height): 0.91 m x 0.82 m x 1.6 m
Weight: 275 kg

Standard Equipment (summary)

• Saw blade welder assembly
• Blade cutting unit
• Work lamp
• Saw blade
• Coolant system
• Adjustable material stop for table
• Operating manual

Features / Technical specifications

• Model: VB 300 A
• Series: VB A (vertical bandsaws)
• Working table dimensions: 500 x 400 x 890 mm
• Table swivel (angle adjustment l/r): 15° / 45°
• Cutting capacity (height x throat): 185 mm x 310 mm
• Cutting speed range: 10–180 m/min (infinitely variable)
• Main motor rating: 0.55 kW
• Grinding motor rating: 0.09 kW
• Blade welder power: 2.4 kVA
• Acceptable blade widths: 3 mm–16 mm
• Blade length range: 2,835 mm–2,915 mm
• Overall dimensions (L x W x H): 0.91 m x 0.82 m x 1.6 m
• Weight: 275 kg
• Standard features include carbide-jaw blade guides, micro-adjustable blade tension, replaceable plastic covers for drive and idler, minimum-quantity cooling and strip welding unit
