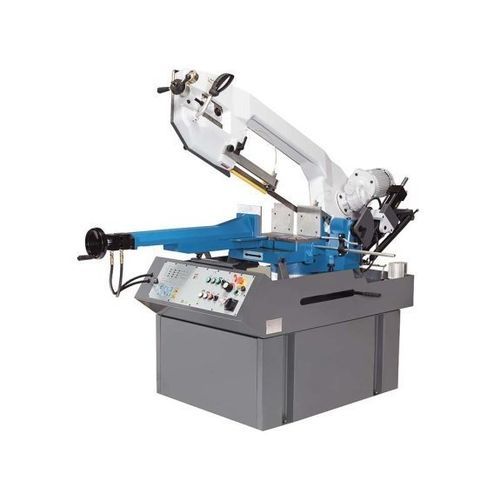

Band saw SBS 355

horizontalfor metalsfor profiles

Overview
The SBS Series universal workshop band saws are compact semi-automatic horizontal band saws featuring a one-piece cast-iron swiveling saw frame. The frame swivels 60° to the right and 45° to the left. Feed is selectable manual or valve-controlled hydraulic, making the machine suited to efficient machining of small batches.

Highlights

• One-piece cast-iron saw frame, torsion-resistant
• Rigid vise with long stroke and lateral slide
• High cutting capacity up to 355 mm (round)
• Infinitely variable blade speed (20–80 m/min) via inverter
• Compact footprint with integrated machine base

Product details / Features

• Rigid vise with lateral slide, long stroke and extended guideways in movable jaw segments
• Swiveling saw frame: 60° right / 45° left for mitre cuts
• Adjustable blade guides and carbide jaws combined with ball-bearing guides for precise cuts
• Wide bi-metal saw blade for stability during heavy machining
• Manual feed option for sensitive workpieces; hydraulic valve-controlled feed for repeatable production
• Hardened, polished helical gear with large bronze drive wheel for extended service life
• Low noise operation, short machining times and easy handling
• Motor rated for continuous operation and high-capacity coolant system included
• Hydraulic quick-action clamping fixture for series production to maintain constant clamping force
• Integrated hydraulics lift the saw frame to home position at end of cut

Standard equipment

• 1 saw blade (bi-metal recommended for heavy cutting)
• Coolant system
• Machine base with storage space
• Pressure gauge for blade tensioning
• Hydraulic cylinder for saw frame
• Inverter for infinitely variable blade speed
• Hydraulic workpiece clamping
• Operating manual

Technical specs — Cutting Capacities / Drive / Measures & Weights (table)
Cutting capacity 0° (round): 355 mm
Cutting capacity 0° (square): 300 mm
Cutting capacity 0° (flat) (L x W): 300 mm x 490 mm
Cutting capacity 45° (square) L: 250 mm
Cutting capacity 45° (flat) (L x W): 250 mm x 250 mm
Cutting capacity 45° (round) L: 290 mm
Cutting capacity 45° (square) R: 290 mm
Cutting capacity 45° (round) R: 350 mm
Cutting capacity 45° (flat) R (L x W): 290 mm x 340 mm
Cutting capacity 60° R (round): 230 mm
Cutting capacity 60° R (square): 180 mm
Cutting capacity 60° R (flat) (L x W): 180 mm x 220 mm
Cutting speed: 20 - 80 (infinitely variable) m/min
Motor rating main drive: 2.2 kW
Saw blade dimensions: 3,770 mm x 34 mm x 1.1 mm
Overall dimensions (L x W x H): 2.18 m x 0.96 m x 1.6 m
Weight: 805 kg

Technical specifications

• Model: SBS 355
• Type: Semi-automatic horizontal band saw with swiveling frame
• Frame material: One-piece cast iron
• Blade speed: 20–80 m/min (inverter)
• Main motor: 2.2 kW
• Recommended blade: Wide bi-metal blade 3,770 x 34 x 1.1 mm
• Clamping: Hydraulic quick-action clamping
• Application: Workshops, small-series production, a wide range of metallic profiles
