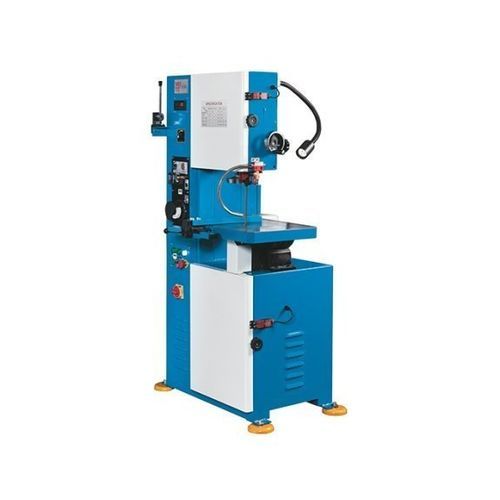

Band saw VB 500 A

verticalfor steelautomatic

Overview
A vertical band saw from the VB A series designed for steel workshops and industrial metalworking. The VB 500 A provides a rigid steel frame, stable swivel work table and adjustable blade guides for versatile cutting of external and internal contours.

Highlights

• Swiveling work table for angled cuts
• Infinitely variable blade speed (electronic control)
• Adjustable blade guide with carbide jaws
• Integrated saw blade welder with shearing and grinding unit

Product details

• Torsionally rigid steel machine frame for stable operation
• Functional design with intuitive handling across the series
• Support table swivels left and right for mitre/angled cuts
• Blade speed set electronically and shown on a large digital display
• Carbide jaws on the blade guides adjustable to different blade widths
• Drive and idler wheels with replaceable plastic covers
• Blade tension micro-adjustable via an accessible hand wheel
• Standard minimum-quantity lubrication/cooling (MQL) to extend blade life and reduce machining costs

Working area
Table dimensions: 700 mm x 660 mm x 980 mm
Table angle adjustment (L/R): 15/30°

Cutting capacities
Cutting capacity (height x throat): 310 mm x 500 mm
Cutting speed range: 15 m/min – 328 m/min

Drive capacity
Main drive motor: 1.5 kW
Grinding motor: 0.09 kW
Blade welder capacity: 2.4 kVA

Measures and weights
Blade width: 3 mm – 16 mm
Blade length: 3,980 mm – 4,050 mm
Overall dimensions (L x W x H): 1.25 m x 1.04 m x 1.98 m
Weight: 410 kg

Standard Equipment / Included Items

• Saw blade welder assembly
• Blade cutting unit
• Work lamp
• Saw blade
• Coolant system (MQL)
• Adjustable material stop for table
• Operating manual

Characteristics / technical specifications

• Model: VB 500 A
• Series: VB A (vertical band saws)
• Cutting capacity (H x throat): 310 mm x 500 mm
• Cutting speed: 15–328 m/min
• Main drive motor: 1.5 kW
• Grinding motor: 0.09 kW
• Blade welder: 2.4 kVA
• Supported blade widths: 3–16 mm
• Blade length range: 3,980–4,050 mm
• Table dimensions: 700 x 660 x 980 mm
• Table swivel angles (L/R): 15/30°
• Overall dimensions (L x W x H): 1.25 m x 1.04 m x 1.98 m
• Weight: 410 kg
