3-axis machining center VECTOR 1200 M Si

verticalcolumn typeSK40

Overview

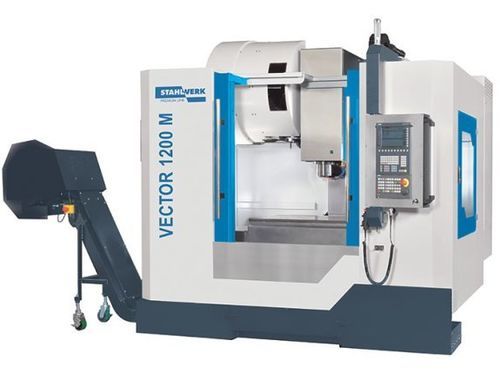

The VECTOR 1200 M SI is a vertical machining center developed for machining large, heavy workpieces. The Meehanite cast machine frame, robust Y-axis guide design and high-quality components deliver stable cutting performance and precision in multi-shift production. The machine supports a wide range of accessories and automation options to build turnkey solutions for specific applications.

Highlights

• Spindle on multiple bearings to minimise vibrations
• 30-bar through-spindle coolant (CTS) for optimal chip removal
• Designed for multi-shift operation
• Extensive customisation and automation options
• 2-year standard warranty

Working area
Table dimensions: 1300 mm x 600 mm
Table load capacity: 1,200 kg
Tool weight max.: 7 kg
Spindle nose-to-table surface distance: 150 mm – 750 mm
Spindle centre to column distance: 670 mm
Number of T-slots: 5
T-slot (width x spacing): 18 mm x 100 mm

Travels
Travel X-axis: 1,220 mm
Travel Y-axis: 600 mm
Travel Z-axis: 600 mm

Headstock
Spindle speed: 10,000 min-1
Spindle mount: SK 40 ISO 7388-1 (DIN 69871)

Rapid feed
Rapid feed: 36 m/min

Feed
Work feed: 10,000 mm/min

Tooling
Number of tool stations: 24 positions (standard)
Tool size Ø x L (max.): 80 mm x 300 mm
Tool-changing time, chip/chip: 3.9 s
Tool-changing time, tool/tool: 1.8 s

Accuracies
Positioning accuracy: ±0.005 mm (±0.0002")
Repeatability: ±0.003 mm (±0.00012")

Drive capacity
Main drive, continuous: 12 kW
Motor rating X-axis: 3.3 kW
Motor rating Y-axis: 3.3 kW
Motor rating Z-axis: 5.5 kW
Total power consumption: 13 kVA

Control
Control: Siemens (SINUMERIK options available)

Measures and weights
Overall dimensions (L x W x H): 3.00 m x 2.40 m x 2.93 m
Weight: 6,500 kg

Machine design

• Low-centre-of-gravity base design for rigidity and stability with workpiece weights up to 1,200 kg
• FEM-verified frame stability under realistic load conditions
• Compact footprint to save workshop space
• Linear roller guides on all axes for high load capacity and smooth dynamic motion
• Powerful servo drives directly coupled to large preloaded ball screws for loss-free torque transmission

Main spindle

• Multi-bearing spindle design for force absorption and heat control under load
• Large preloaded bearings for radial stability in heavy machining
• High-temperature lubricants for reliable lubrication across temperatures
• Tool clamping on taper and flange surfaces for secure retention

Tool changer

• 24-position magazine with fast dual-arm gripper
• Tool/tool change time 1.8 s: enables efficient cycle times

Handling

• Fully enclosed working area with large front door and side openings for access and cleanliness
• Electrical equipment separated into high- and low-voltage cabinets to reduce heat and noise
• Electronic handwheel for simplified set-up
• Automatic central lubrication for all lubrication points

Technical specifications

• Model: VECTOR 1200 M SI
• Work table: 1300 x 600 mm, load 1,200 kg
• Travels (X / Y / Z): 1,220 / 600 / 600 mm
• Spindle: SK40, 10,000 min-1 (options available)
• Tool magazine: 24 positions, tool/tool 1.8 s
• Main drive: 12 kW continuous
• Rapid feed: 36 m/min
• Positioning accuracy: ±0.005 mm; repeatability ±0.003 mm
• Control: Siemens (SINUMERIK)
• Weight / footprint: 6,500 kg / 3.00 m x 2.40 m x 2.93 m
