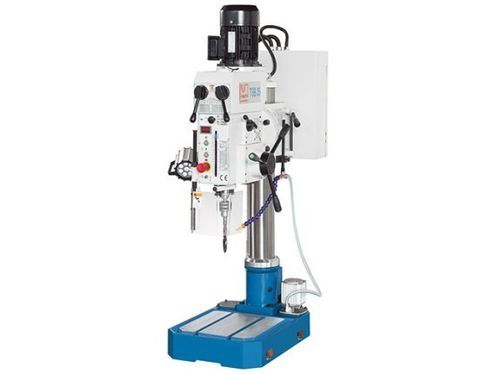

Bench drilling machine TSB 35

column typefor steelcompact

Description
The TSB 35 column/bench drill is designed for industrial workshops and repair shops requiring compact footprint with high drilling performance. It features a geared main spindle for high torque, a wide speed range, a swiveling head for angled drilling and an automatic quill feed for large diameters. The machine is built on a rigid cast-iron structure and is available in 6 or 12 speed versions.

Highlights

• Compact table/bench design for space-saving installation
• Swiveling drill head (±45°) for angled operations
• Geared spindle for high torque and wide speed range

Product Details

• Drilling capacity: 35 mm
• Throat (swing): 320 mm
• Spindle nose-to-foot distance: 645 mm
• Spindle speeds (12): 125–3030 rpm
• Spindle mount: MT 4
• Quill stroke: 155 mm with automatic quill feed
• Rigid cast-iron construction; height-adjustable head
• Rectangular table with T-slots and circumferential coolant groove
• Digital speed (rpm) display and tapping feature

Standard equipment

• Base (machine base with storage space)
• Protective shield
• Thread cutting / tapping function with auto-reverse
• LED work lamp
• Coolant system
• Drill chuck and operating tools
• Operating manual

Technical specifications

• Working area: Drilling capacity: 35 mm; Tapping capacity (steel): M22; Foot set up area (L x W): 370 mm x 360 mm; Vertical head travel: 515 mm; Spindle nose-to-foot distance: 645 mm; Throat depth: 320 mm; Column diameter: 120 mm
• Headstock: Spindle speed: 125–3,030 rpm; Spindle mount: MT 4; Quill stroke: 155 mm
• Feed: Quill feeds: (3) 0.1 / 0.2 / 0.3 mm/rev
• Drive: Motor rating main drive: 1.2 kW
• Dimensions & weight: Overall (L x W x H): 0.81 m x 0.5 m x 1.67 m; Weight: 340 kg
