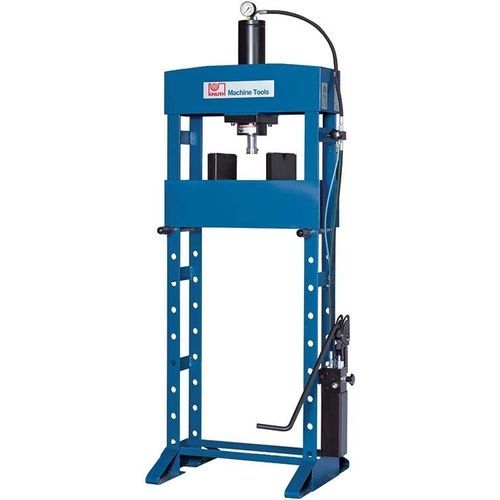

Manual press KNWP 15 M

hydraulicformingstraightening

Overview
The KNWP 15 M is a manual hydraulic workshop press manufactured in Europe for general assembly, straightening and testing of workpieces. It is designed for safe, professional use in mechanical workshops, garages and maintenance shops.

Key features

• Pressing force: 15 t
• Operation: hand and foot control
• Adjustable support table height
• Material support included
• 2-step hydraulics (quick stroke / work stroke)
• Automatic piston reset adjustable via throttle valve and spring

Applications

• Removal and installation of press-fit bearings, bolts and bushings
• Straightening of beams, shafts, axles and profiles
• Pressing, crimping and forming work
• Load tests and weld sample testing
• Material testing and workshop assembly tasks

Technical specifications

• Pressure force: 15 t
• Operating pressure (max.): 382.2 bar
• Total piston stroke: 160 mm
• Throat width: 560 mm
• Hydraulic tank volume: 1.65 l
• Weight: 117 kg
• Overall dimensions (L x W x H): 0.83 m x 0.6 m x 1.93 m

Operation & design

• Rigid machine frame with precisely machined welded construction
• Hydraulic pump operable by hand or foot control for flexible use
• 2-step hydraulic system with change-over switch for fast stroke and work stroke
• Automatic piston return, user-adjustable
• Support table with lifting system and easy height adjustment
• Includes multifunction die for straightening flat material and corrugations
• Smooth horizontally adjustable working cylinder to simplify set-up (applies to larger model KNWP 50M)
