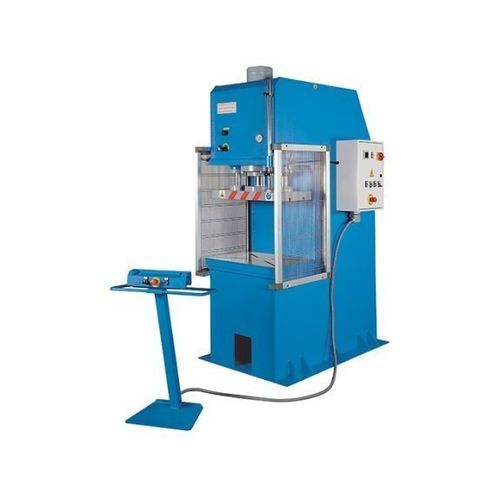

Hydraulic press HPK 40 A

formingdeep drawingfor industrial applications

Overview
The HPK A series are hydraulic C‑frame presses designed for deep drawing, forming and notching operations. Manufactured in Europe with components meeting strict quality standards, the series covers nominal forces from 40 to 200 t. Large ram plates and a worktable with T‑slots allow flexible tooling and fixture setups. Mobile two‑hand operation ensures operator safety and stroke travel is defined by adjustable limit stops. Customized configurations are available to meet specific customer requirements.

Highlights

• Classic C‑frame design for compact footprint and accessibility
• Made in Europe with welded steel construction
• Suitable for testing, prototyping and series production
• Industry 4.0 integration ready
• Customer‑specific solutions available

Product details

• Welded C‑frame steel construction sized for rated press force, providing high rigidity
• Large ram plates and worktable to accept large dies or multiple setups
• Hydraulic technology provides flexible stroke distance/time profiles for diverse processes
• Powerful hydraulic cylinder and two self‑lubricating circular guides ensure precise, uniform ram guidance
• Precision‑machined cylinder surfaces and high‑quality seals for low wear and long service life
• Rapid stroke length adjustment via easy‑to‑set mechanical stops
• Compact hydraulic unit mounted inside the frame for space efficiency and service access
• 2‑stage hydraulic pump for fast approach and optimized working stroke speeds
• Ram plate and worktable with T‑slots for secure tool clamping
• Mobile control panel for flexible operation; additional controls integrated in the electrical cabinet
• Design and components comply with European safety standards

Standard equipment

• Two‑hand control panel
• Adjustable up/down stroke stops
• Pressure gauge
• Movable upper table with 2 guides and T‑slots
• Automatic operation mode
• Automatic cylinder return
• Siemens PLC
• Hydraulic unit with 2‑speed automatic change
• Pressure switch
• Timer
• Operator manual

Optional equipment

• Light curtain L = 1,000 mm
• Upgrade to Siemens KTP 700 Basic digital control
• Upgrade from 2 to 4 lateral guides
• Piece counter
• Air/oil heat exchanger with decompression valve
• Decompression valve

Technical Specs (tables)
Working area
Pressure force: 40 t
Table dimensions: 700 mm x 500 mm
Stroke (max): 500 mm
Ram‑plate size: 700 mm x 350 mm
Throat depth: 250 mm
Stroke speed: 9 mm/s

Rapid feed
Rapid feed: 26 mm/s

Drive capacity
Motor rating: 4 kW

Measures and weights
Overall dimensions (L x W x H): 1.5 m x 1.0 m x 2.5 m
Weight: 1,500 kg

Technical characteristics

• Model/series: HPK A series
• Manufactured: Europe (welded C‑frame steel construction)
• Nominal pressing force: 40 t
• Table dimensions: 700 mm x 500 mm
• Ram plate: 700 mm x 350 mm with T‑slots
• Stroke (max): 500 mm
• Throat depth: 250 mm
• Stroke speed: 9 mm/s
• Rapid feed: 26 mm/s
• Motor rating: 4 kW
• Hydraulic unit: 2‑stage pump with automatic speed change
• Features: two circular guides for ram parallelism, self‑lubricating guides, precision‑machined cylinder surfaces, mobile control panel, Siemens PLC option and Industry 4.0 readiness
• Footprint (L x W x H): 1.5 m x 1.0 m x 2.5 m
• Approx. weight: 1,500 kg
