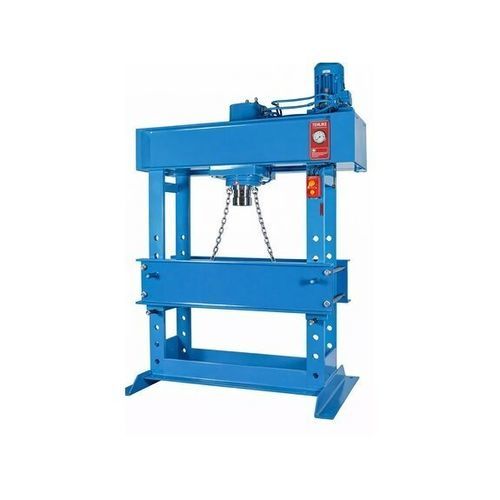

Hydraulic press KNWP H 200

motorizedstraighteningassembly

Description
This series of motor-driven hydraulic workshop presses features a torsion-resistant gantry frame with an adjustable open support table. Designed for pressing-in and pressing-out bearings, assembly and straightening operations, and material testing. The laterally positionable working cylinder enables setting up without moving the workpiece, improving workflow in technical workshops and maintenance departments.

Highlights

• Motorized hydraulic power unit
• Horizontal piston travel with long stroke
• Height-adjustable open support table
• Includes set of prismatic (V) blocks and manometer

Standard equipment / Options (examples)

• Movable working cylinder
• Height-adjustable work table
• Set of V-blocks (prismatic blocks)
• Pressure gauge (manometer)
• Operator manual

Technical specifications
Working area
Working width: 1.550 mm
Frame through-hole: 550 mm
Pressure force (rated): 200 t
Maximum operating pressure: 400 bar
Stroke: 400 mm
Forward / press speed: 6.4 mm/s
Return speed: 11.04 mm/s

Drive capacity
Hydraulic pump motor rating: 7.5 kW

Measures and weights
Hydraulic tank volume: 22 l
Weight: 2,600 kg
Dimensions (L x W x H): 2,230 mm x 1,200 mm x 2,850 mm

Dimensions (detailed)
A: 2,850 mm
B: 1,200 mm
C: 1,910 mm
D: 1,300 mm
E: 450 mm
F: 2,230 mm

Product details / Technical features

• Model: KNWP H 200
• Torsionally rigid welded gantry-style frame in thick-walled sectional steel
• Heavy-duty, professional design for repair and assembly tasks
• Fine adjustment of press force for truing axles, supports and shafts
• Long piston stroke for removal and press-fitting of bearings and bushings
• Pressure gauge visible to the operator at all times
• Motorized hydraulic unit for continuous, efficient operation
• Laterally adjustable working cylinder for easier setup
• Includes adjustable open support table and prismatic V-block set
