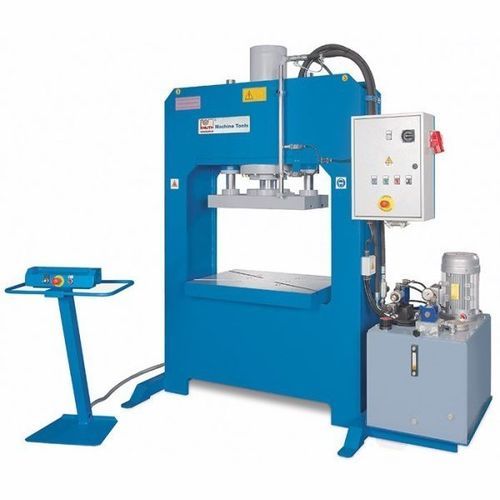

Hydraulic press KP 70 A

formingdeep drawingH-frame

Product description
The KP 70 A is part of the KP-A family of H-frame hydraulic presses manufactured in Europe using components from reputable suppliers. It is designed for deep drawing, forming and notching operations with a nominal pressing force of 70 t. The machine features large ram and table plates with T-slots for tool mounting and a mobile two-hand control for safe operation.

Highlights

• Made in Europe
• Suitable for testing and series production
• Designed for multi-shift operation
• Industry 4.0 integration possible
• Customised solutions available on request

Working area
Pressure force: 70 t
Table dimensions: 800 mm x 500 mm
Stroke: 500 mm
Ram-plate size: 700 mm x 350 mm
Throat width: 900 mm
Stroke speed: 5 mm/s

Rapid feed
Rapid feed: 24 mm/s

Drive capacity
Motor rating: 4 kW

Measures and weights
Overall dimensions (length x width x height): 1.85 m x 1.04 m x 2.25 m
Weight: 1,450 kg

Product details

• Welded steel H-frame construction for high rigidity and to withstand rated press force
• Hydraulic main cylinder drives a thick ram plate stabilized by heavy-duty self-lubricating circular guides
• Work table and ram plate equipped with T-slots for flexible tool clamping
• Mobile control panel for operator flexibility; additional controls integrated in the control cabinet
• Hydraulic system configured as a standalone unit for simplified maintenance and thermal balance
• 2-step hydraulic pump for fast rapid feed and optimized working speeds
• Precision-machined cylinder surfaces and high-quality seals to minimize wear
• Construction complies with applicable European safety standards

Standard equipment

• Two‑hand control panel
• Adjustable stops for up/downstroke
• Pressure gauge
• Movable upper table with 2 guides and T-slots
• Automatic operation
• Automatic cylinder return
• Siemens PLC
• Hydraulic unit with 2-speed automatic change
• Pressure switch
• Timer
• Operator manual

Optional equipment

• Light curtain L = 1,000 mm
• Siemens KTP 700 Basic HMI upgrade
• Upgrade from 2 to 4 lateral slides
• Pieces counter
• Air/oil heat exchanger with decompression valve
• Decompression valve

Technical specifications

• Series: KP-A (H-frame hydraulic press family)
• Nominal pressing force: 70 t
• Table (work area): 800 x 500 mm
• Ram plate: 700 x 350 mm
• Stroke (ram travel): 500 mm
• Stroke speed: 5 mm/s
• Rapid feed speed: 24 mm/s
• Throat width: 900 mm
• Motor power: 4 kW
• Overall dimensions (L x W x H): 1.85 m x 1.04 m x 2.25 m
• Machine weight: 1,450 kg
• Hydraulic system: standalone unit with 2-step pump for automatic speed change
• Control: Siemens PLC (option for Siemens KTP 700 Basic HMI)
• Tool mounting: T-slots on ram plate and work table
