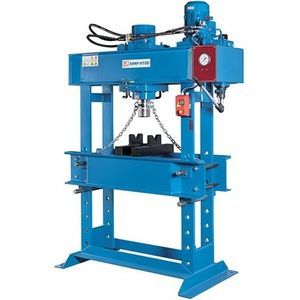

Hydraulic press KNWP H 160

motorized

Overview
This series of hydraulic workshop presses with motor drive features a torsion‑resistant welded portal frame and an adjustable open support table. It is designed for pressing in/out bearings, assembly and straightening tasks, and for testing workpieces. The laterally positionable working cylinder enables setup without relocating the workpiece. These presses are suited for technical workshops and maintenance departments.

Highlights

• Motorized hydraulic drive unit
• Horizontal, laterally positionable working cylinder
• Adjustable open support table
• Included set of prismatic (V) blocks

Product details

• Torsionally rigid welded gantry-style frame made of thick-walled sectional steel
• Heavy-duty design for professional use
• Versatile for repair, assembly and straightening work
• Finely adjustable press force for truing axles, supports and shafts
• Long piston stroke for press-fitting and removing bearings and bushings
• Pressure gauge provides continuous reading of working pressure
• Motorized hydraulic unit for efficient operation
• Smooth horizontal adjustment of work cylinder for easier set-up
• Premium components for reliable, long-term operation

Technical specifications — Working area
Working width: 1,100 mm
Frame through-hole: 350 mm
Pressure force: 160 t
Operating pressure (max.): 400 bar
Stroke: 400 mm
Forward motion speed: 6.2 mm/s
Press speed: 6.2 mm/s
Return speed: 9.8 mm/s

Technical specifications — Drive capacity
Motor rating hydraulic pump: 5.5 kW

Technical specifications — Measures and weights
Hydraulic tank volume: 15 l
Weight: 1,300 kg
Dimensions (L x W x H): 1,640 mm x 950 mm x 2,550 mm

Technical specifications — Dimensions (labels A–F)
A: 2,550 mm
B: 950 mm
C: 1,390 mm
D: 1,100 mm
E: 350 mm
F: 1,640 mm

Standard equipment

• Laterally positionable work cylinder
• Adjustable open support table
• Set of prismatic (V) blocks
• Pressure gauge
• Operating manual

Applications

• Press-fitting and removal of bearings and bushings
• Assembly and dismantling operations
• Straightening of axles, shafts and supports
• Material and component testing in workshops
