Hydraulic press KP 300 A

formingdeep drawingH-frame

Overview

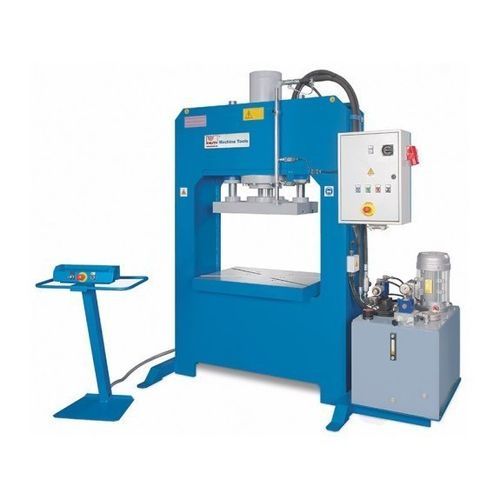

The KP 300 A is part of the KP-A series of H-frame hydraulic presses designed and manufactured in Europe for industrial deep drawing, forming and notching operations. Force range covers up to 300 t. The robust welded frame, large ram plate and T-slotted work table facilitate tool mounting and heavy-duty production use. Mobile two-hand control and adjustable limit switches ensure safe operation. Custom configurations are available to match specific production requirements.

Highlights

• Made in Europe
• Suitable for prototype and series production
• Multi-shift operation capability
• Industry 4.0 integration possible
• Customised solutions on request

Technical specifications (extract)
Working area

• Pressure force: 300 t
• Table dimensions: 1400 mm x 1000 mm
• Ram-plate size: 1100 mm x 800 mm
• Stroke: 500 mm
• Throat width: 1500 mm
• Stroke speed: 2 mm/s

Rapid feed

• Rapid feed: 22 mm/s

Drive capacity

• Motor rating: 7.5 kW

Measures and weights

• Overall dimensions (L x W x H): 2.5 m x 1.65 m x 2.65 m
• Weight: 7,200 kg

Product details

• Welded steel H-frame construction for high rigidity and to withstand full machine force
• Large hydraulic cylinder with thick ram plate guided by heavy-duty self-lubricating circular guides
• Work table and ram plate with T-slots for flexible tool clamping
• Mobile control panel plus integrated controls in the cabinet for flexible operation
• Standalone hydraulic power unit for low maintenance and thermal balance
• Two-stage hydraulic pump for fast rapid feeds and optimized stroke speeds
• Precision-machined cylinder surfaces and quality seals for low wear and long service life
• Design and components comply with applicable European safety standards

Standard equipment

• Two-hand mobile control panel
• Adjustable end stops
• Pressure gauge
• Ram plate with guides and T-slots
• Automatic mode and automatic return stroke
• Siemens PLC
• Two-stage hydraulic pump with automatic shifting
• Foot switch and operating time timer

Optional equipment

• Light curtain (L = 1,000 mm)
• Upgrade to Siemens KTP 700 Basic digital control
• Press stroke counter
• Oil cooler with decompression valve
• Decompression valve
