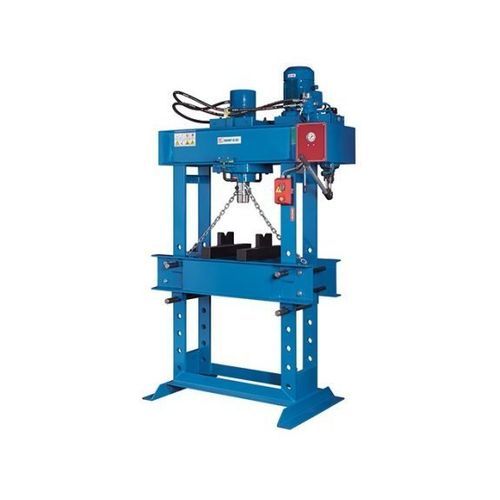

Hydraulic press KNWP H 60

motorizedwith movable piston

Description
This series of motorized hydraulic workshop presses is built around a torsion-resistant gantry frame with an adjustable open support table. It is intended for pressing-in and pressing-out bearings, assembly and straightening tasks, and testing workpieces. The laterally positionable working cylinder allows setup without moving the workpiece, improving efficiency in technical workshops and maintenance departments.

Highlights

• Motorized hydraulic drive unit
• Horizontally positionable working cylinder
• Adjustable table height
• Includes set of prismatic (V) blocks

Working area (technical data)
Working width: 830 mm
Frame through-hole: 300 mm
Pressure force: 60 t
Operating pressure (max.): 400 bar
Stroke: 400 mm
Forward / press speed: 6.1 mm/s
Return speed: 10 mm/s

Drive capacity
Hydraulic pump motor rating: 3 kW

Measures and weights
Hydraulic tank volume: 6 l
Weight: 700 kg
Dimensions (L x W x H): 1,460 mm x 850 mm x 2,400 mm

Dimensions (detailed)
A: 2,400 mm
B: 850 mm
C: 1,050 mm
D: 830 mm
E: 300 mm
F: 1,460 mm

Product details

• Torsion-resistant welded gantry frame made from thick-walled profile steel
• Heavy-duty design for professional use
• Suitable for a wide range of repair and assembly tasks
• Finely adjustable press force for truing axles, supports, shafts and similar parts
• Long piston stroke for efficient removal and press-fitting of bearings and bushings
• Pressure gauge provides continuous readout of working pressure
• Motorized hydraulic unit for efficient operation
• Horizontally adjustable work cylinder simplifies setup
• Premium components for long-term reliable operation

Standard equipment / accessories

• Movable working cylinder
• Height-adjustable work table
• Prismatic block set
• Pressure gauge
• Operating manual

Technical specifications

• Model: KNWP H 60
• Working width: 830 mm
• Frame through-hole: 300 mm
• Pressure force: 60 t
• Operating pressure (max.): 400 bar
• Stroke: 400 mm
• Forward / press speed: 6.1 mm/s
• Return speed: 10 mm/s
• Hydraulic pump motor: 3 kW
• Hydraulic tank volume: 6 l
• Weight: 700 kg
• Dimensions (L x W x H): 1,460 mm x 850 mm x 2,400 mm
