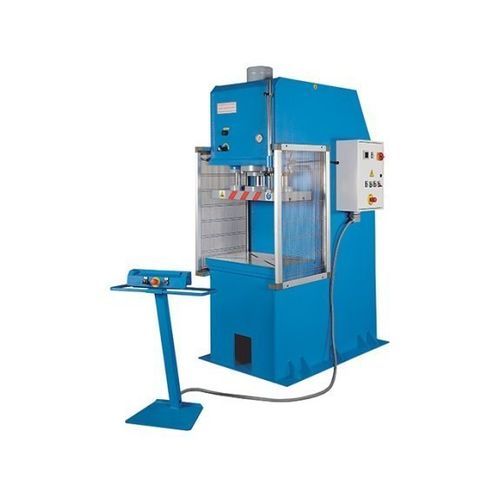

Hydraulic press HPK 100 A

formingdeep drawingfor production

Overview

The HPK A series C‑frame hydraulic press is designed for deep drawing, forming and notching operations. The HPK 100 model provides a nominal pressing force of 100 t, with a large ram plate and an 800 x 600 mm work table. Built in Europe with precision components, it features adjustable stroke, mobile two‑hand control and options for automation and Industry 4.0 integration.

Highlights

• C‑frame design for high rigidity and accessibility
• European manufacturing and quality components
• Suitable for prototyping and series production
• Mobile two‑hand operation for operator safety
• Customization and digital integration available

Product details

• Robust welded C‑frame steel construction sized for the machine force
• Large ram plate and work table to accommodate big tools or multiple setups
• Powerful hydraulic cylinder with two self‑lubricating circular guides for precise, uniform ram feed
• Precision‑machined cylinder surfaces and high‑quality seals for reduced wear
• Rapid stroke length adjustment via easily set mechanical stops
• Compact hydraulic unit integrated into the frame for space efficiency
• Two‑stage hydraulic pump for fast rapid feeds and optimal working stroke speeds
• Ram plate and table equipped with T‑slots for tool clamping
• Mobile control panel and additional controls integrated in the control cabinet
• Designed and manufactured to meet European safety directives

Standard equipment

• Two‑hand control panel
• Adjustable stroke stops
• Pressure gauge
• Movable ram plate with 2 guides and T‑slots
• Automatic operation mode
• Automatic cylinder return
• Siemens PLC
• Two‑speed hydraulic unit with automatic changeover
• Pressure switch
• Timer
• Operator manual

Optional equipment

• Light curtain L = 1,000 mm
• Upgrade to Siemens KTP 700 Basic digital control
• Upgrade from 2 to 4 lateral guides
• Part counter
• Oil cooler with decompression valve
• Decompression valve

Technical specifications

• Pressing force: 100 t
• Table dimensions: 800 mm x 600 mm
• Stroke: 500 mm
• Ram-plate size: 700 mm x 350 mm
• Throat depth: 300 mm
• Working stroke speed: 4 mm/s
• Rapid feed: 25 mm/s
• Motor rating: 4 kW
• Overall dimensions (L x W x H): 1.9 m x 1.2 m x 2.6 m
• Weight: 3,400 kg
