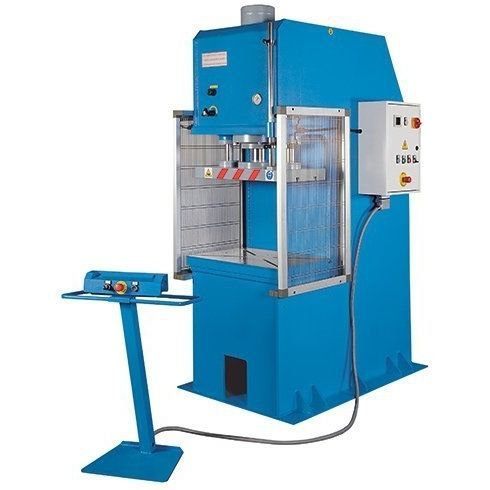

Hydraulic press HPK 200 A

punchingformingdeep drawing

Description
The HPK 200 A is a C-frame hydraulic press designed for deep drawing, forming, punching and notching. Manufactured in Europe, this model delivers up to 200 t pressing force. The machine features a large ram plate and a T-slotted work table for tool clamping, two self-lubricating circular guides for precise ram parallelism, mobile two-hand control for operator safety, and adjustable stroke limit switches. The compact hydraulic unit is integrated inside the frame. Siemens PLC and Industry 4.0 options are available. Custom configurations can be supplied on request.

Highlights

• C-frame hydraulic press, model HPK 200 A – 200 t
• Manufactured in Europe
• Large T-slotted ram plate and work table for flexible tooling
• Two self-lubricating circular guides for accurate ram alignment
• Mobile two-hand control and adjustable stroke stops for safe operation
• 2-stage hydraulic pump for fast rapid feed and optimal working stroke
• Optional Siemens PLC and Industry 4.0 integration
• Custom solutions available

Technical specifications
Working area
Pressure force: 200 t
Table dimensions: 1,000 mm x 600 mm
Stroke: 500 mm
Ram-plate size: 870 mm x 500 mm
Throat depth: 300 mm
Stroke speed (working): 3 mm/s

Rapid feed
Rapid feed: 21 mm/s

Drive capacity
Motor rating: 7.5 kW

Measures and weights
Overall dimensions (L x W x H): 2.3 m x 1.5 m x 3 m
Weight: 8,200 kg

Standard equipment

• Mobile two-hand control panel
• Adjustable stroke limit stops
• Pressure gauge
• Ram plate with 2 circular guides and T-slots
• Automatic mode and automatic return stroke
• Siemens PLC
• 2-stage hydraulic pump with automatic changeover
• Pressure switch
• Working time timer
• Operation manual

Applications

• Punching
• Deep drawing
• Forming and notching
• Testing and batch production
