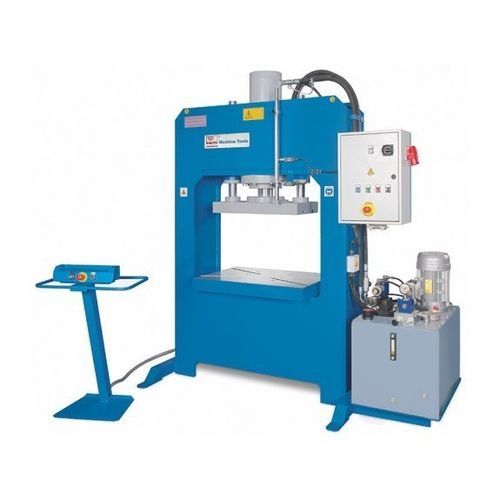

Hydraulic press KP 150 A

formingdeep drawingH-frame

Product description
The KP-A series consists of high-performance H-frame hydraulic presses manufactured in Europe using premium components from reputable suppliers. They are intended for deep drawing, forming and notching operations. Available force range within the series: 40–300 tons. The design incorporates large ram plates on the cylinder and a work table with T-slots for tool and fixture mounting. Mobile two-hand control enhances operator safety. Stroke travel is set via adjustable limit switches. Customised solutions available on request.

Highlights

• Made in Europe
• Suitable for testing and series production
• Multi-shift operation possible
• Industry 4.0 integration possible
• Customised solutions on request

Product details

• Robust welded H-frame steel construction for high rigidity, designed for maximum machine force
• Hydraulic presses offer versatility through adjustable stroke distance and timing
• Large hydraulic cylinder drives a thick ram plate stabilized by heavy-duty self-lubricating circular guides
• Work table and ram plate equipped with T-slots for secure tool clamping
• Mobile control panel for flexible positioning; additional controls accessible in the control cabinet
• Hydraulic system configured as a separate unit for low maintenance and optimum thermal balance
• 2-stage hydraulic pump for fast rapid feeds and optimal working stroke speeds
• Precision-machined cylinder surfaces and high-quality seals for low wear and long reliability
• Components manufactured to strict standards; construction complies with European safety directives

Working area
Pressure force: 150 t
Table dimensions: 1.200 mm x 700 mm
Stroke: 500 mm
Ram-plate size: 1.000 mm x 400 mm
Throat width: 1.250 mm
Stroke speed: 3 mm/s

Rapid feed
Rapid feed: 22 mm/s

Drive capacity
Motor rating: 4 kW

Measures and weights
Overall dimensions (length x width x height): 2,35 m x 1,5 m x 2,5 m
Weight: 4.900 kg

Technical specifications

• Pressure force: 150 t
• Table dimensions: 1.200 mm x 700 mm
• Stroke: 500 mm
• Ram-plate size: 1.000 mm x 400 mm
• Throat width: 1.250 mm
• Stroke speed: 3 mm/s
• Rapid feed: 22 mm/s
• Motor rating: 4 kW
• Overall dimensions (L x W x H): 2,35 m x 1,5 m x 2,5 m
• Weight: 4.900 kg
