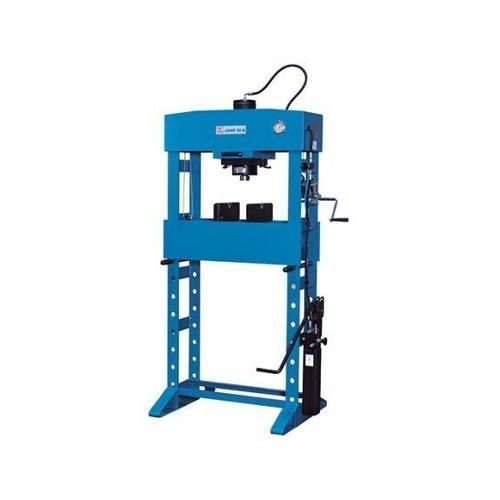

Hydraulic press KNWP 50 M

manualstraighteningassembly

Description
These manual hydraulic workshop presses are built in Europe and are suitable for general assembly and straightening work or for testing workpieces. They enable safe and professional work and are mainly used in mechanical workshops, garages and locksmiths.

Highlights

• Made in Europe
• Hand and foot control
• Adjustable table height
• Material support included

Applications / Use cases

• Removal and installation of press-fit bearings, bolts and bushings
• Straightening beams, shafts, axles and profiles
• Pressing and crimping
• Load tests and weld sample testing
• Straightening of workpieces
• Material testing

Key features

• Rigid machine frame with carefully machined welded construction
• Hydraulic pump operable by hand or foot control
• 2-step hydraulics with change-over switch for quick-stroke and work stroke
• Automatic piston reset, adjustable by user via throttle valve and spring
• Support table rigid yet easy to handle with adjustable height
• Includes multi-function die for straightening flat material and corrugation
• Table lifting system
• Smooth-running, horizontally adjustable working cylinder simplifies set-up (KNWP 50 M only)

Working area
Pressure force: 50 t
Operating pressure (max.): 399.5 bar
Total piston stroke: 160 mm
Throat width: 750 mm

Measures and weights
Hydraulic tank volume: 1.65 l
Weight: 250 kg
Overall dimensions (length x width x height): 1.1 m x 0.76 m x 2.12 m

Characteristics / technical specifications

• Pressure force: 50 t
• Operating pressure (max.): 399.5 bar
• Total piston stroke: 160 mm
• Throat width: 750 mm
• Hydraulic tank volume: 1.65 l
• Weight: 250 kg
• Overall dimensions: 1.1 m x 0.76 m x 2.12 m
• Operation: hand and foot control
• Hydraulic system: 2-step (quick stroke / work stroke)
• Accessories included: material support and multi-function die for straightening and corrugation
