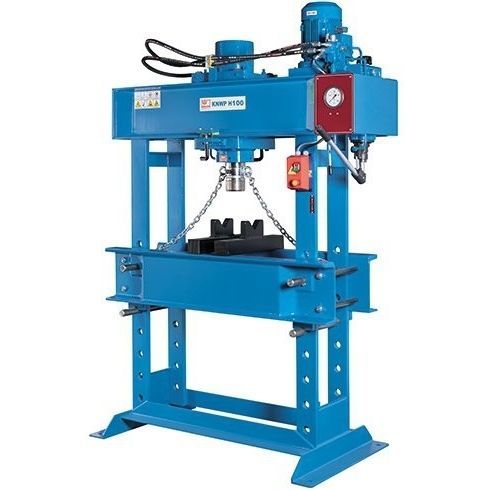

Hydraulic press KNWP H 100straighteningassemblytest
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- straightening, assembly, test
- Structure
- portal
- Force
100 tf
- Stroke
400 mm
(15.748 in)- Max. pressure
400 bar
(5,802 psi)- Working speed
7.1 mm/s
- Return speed
13.4 mm/s
- Hydraulic tank volume
11 l
(2.9 gal)- Weight
1,000 kg
(2,205 lb)- Overall length
1,600 mm
(63 in)- Overall width
850 mm
(33 in)- Overall height
2,450 mm
(96 in)
Description
This series of hydraulic workshop presses with motor drive are designed with a stable portal with adjustable, open support table and are suitable for applications such as pressing in and out bearings, for assembly and straightening work or for testing workpieces. The laterally positionable working cylinder facilitates set-up without the workpiece having to be moved. These presses are almost indispensable in technical workshops and maintenance departments.
Motorized hydraulic drive
Horizontal piston travel
Adjustable table height
Set of prismatic blocks
