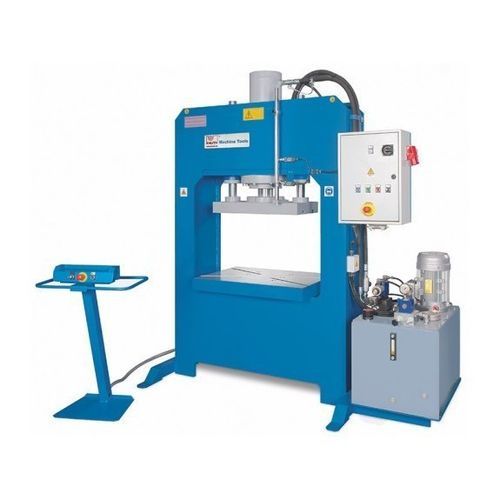

Hydraulic press KP 200 A

formingdeep drawingfor sheet metal

Overview
The KP 200 A is a 200 t H-frame hydraulic press from the KP-A series, designed and manufactured in Europe for deep drawing, forming and notching. The series covers 40–300 t. A large ram plate and a work table with T-slots facilitate tool mounting. Mobile two-hand control, adjustable limit switches and a stand-alone hydraulic unit ensure safe operation and easy maintenance. Industry 4.0 integration and customised solutions are available on request.

Highlights

• Made in Europe
• For prototyping and series production
• Multi-shift operation possible
• Industry 4.0 integration possible
• Customised solutions on request

Product Details

• Welded H-frame steel construction for high rigidity, sized for maximum machine force
• Versatile hydraulic operation thanks to configurable time/distance stroke control
• Large hydraulic cylinder drives a thick ram plate stabilized by heavy-duty self-lubricating circular guides
• Work table and ram plate equipped with T-slots for secure tool clamping
• Mobile control panel for flexible positioning; additional controls integrated in the control cabinet
• Hydraulic system as a stand-alone unit designed for low maintenance and optimal thermal balance
• 2-stage hydraulic pump for fast rapid feeds and optimal working stroke speeds
• Precision-machined cylinder surfaces and high-quality seals for low wear and long service life
• Construction and components comply with European safety standards

Standard Equipment

• Two-hand control panel
• Adjustable stops for up/down stroke
• Pressure gauge
• Movable upper table with 2 guides and T-slots
• Automatic operation
• Automatic cylinder return
• Siemens PLC
• Hydraulic unit with 2-speed automatic change
• Pressure switch
• Timer
• Operator manual

Optional Equipment

• Light curtain L = 1,000 mm
• Upgrade to Siemens KTP 700 Basic digital control
• Upgrade from 2 to 4 lateral slides
• Piece counter
• Air/oil heat exchanger with decompression valve
• Decompression valve

Specifications

• Press force: 200 t
• Table dimensions: 1,200 mm x 700 mm
• Stroke: 500 mm
• Ram-plate size: 1,000 mm x 400 mm
• Throat width: 1,250 mm
• Working stroke speed: 2 mm/s
• Rapid feed: 20 mm/s
• Motor rating: 5.5 kW
• Overall dimensions (L x W x H): 2.35 m x 1.6 m x 2.5 m
• Weight: 5,800 kg
