Hydraulic press KP 100 A

trimmingformingdeep drawing

Overview

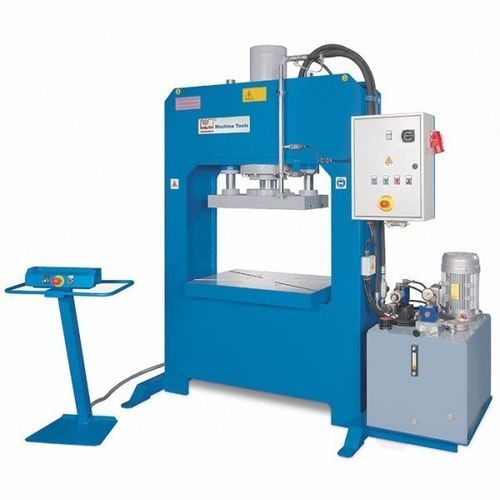

The KP-A series are H-frame hydraulic presses manufactured in Europe for industrial forming operations such as deep drawing, forming and trimming. Designed for forces from 40 to 300 t, the KP 100 A configuration delivers 100 t with a 500 mm stroke. The machine features large ram plates and a T-slotted work table for secure tool mounting. Mobile two-hand control ensures operator safety; stroke limits are set with adjustable end switches. Custom configurations are available to fit application requirements.

Highlights

• Made in Europe
• Suitable for testing and series production
• Capable of multi-shift operation
• Industry 4.0 integration option
• Customised solutions on request

Product Details

• Welded steel H-frame for high rigidity and optimized load path
• Large hydraulic cylinder drives a thick ram plate guided on heavy-duty self-lubricating circular guides
• Work table and ram plate provided with T-slots for tool and fixture clamping
• Mobile control panel for flexible operation; additional controls integrated in the electrical cabinet
• Hydraulic power unit supplied as a standalone module for simplified maintenance and thermal stability
• Two-stage hydraulic pump for rapid approach and controlled working speed
• Precision-machined cylinder surfaces and high-quality seals to minimise wear
• Design and components comply with applicable European safety standards

Standard Equipment

• Two-hand control panel
• Adjustable stops for up/down stroke
• Pressure gauge
• Movable upper table with 2 guides and T-slots
• Automatic operation mode
• Automatic cylinder return
• Siemens PLC
• Hydraulic unit with 2-speed automatic change
• Pressure switch
• Timer
• Operator manual

Optional Equipment

• Light curtain L = 1,000 mm
• Upgrade to Siemens KTP 700 Basic digital control
• Upgrade from 2 to 4 lateral guides
• Parts counter
• Air/oil heat exchanger with decompression valve
• Decompression valve

Technical specifications

• Pressure force: 100 t
• Table dimensions: 900 mm x 600 mm
• Stroke: 500 mm
• Ram-plate size: 700 mm x 350 mm
• Throat width: 1.050 mm
• Stroke speed: 4 mm/s
• Rapid feed: 26 mm/s
• Motor rating: 4 kW
• Overall dimensions (L x W x H): 2.08 m x 1.05 m x 2.26 m
• Weight: 2,300 kg
