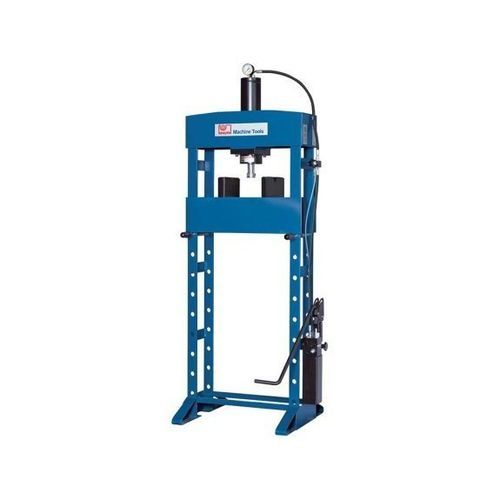

Manual press KNWP 30 M

hydraulicformingstraightening

Description
Manual hydraulic workshop presses manufactured in Europe for general assembly, straightening and component testing. Designed for safe, professional use in mechanical workshops, garages and metal workshops.

Highlights

• Made in Europe
• Hand and foot control
• Adjustable table height
• Material support included

Typical applications

• Removal and installation of press-fit bearings, bolts and bushings
• Straightening beams, shafts, axles and profiles
• Pressing, crimping and forming light parts
• Load tests and weld-sample testing
• Straightening of workpieces
• Material testing

Features

• Rigid machine frame with precision-machined welded construction
• Hydraulic pump operable by hand or foot control
• 2-step hydraulics with change-over switch for quick stroke and work stroke
• Automatic piston reset, adjustable via throttle valve and spring
• Sturdy yet easily handled support table with adjustable height
• Multi-function die included for straightening flat and corrugated material
• Table lifting system
• Smooth-running, horizontally adjustable working cylinder simplifies set-up (feature on larger model variants)

Technical specifications

• Pressing force: 30 t
• Operating pressure (max.): 374.6 bar
• Total piston stroke: 160 mm
• Throat width: 565 mm
• Hydraulic tank volume: 1.65 l
• Weight: 150 kg
• Overall dimensions (L x W x H): 0.83 m x 0.64 m x 2.05 m
• Control: hand and foot
• Hydraulics: 2-step (quick stroke / work stroke)
