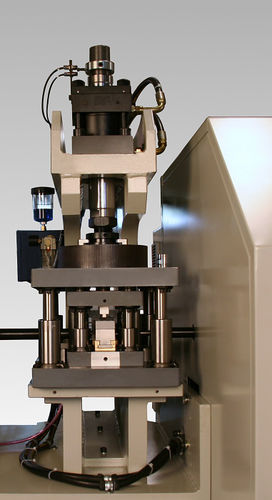

Electro-hydraulic press Accustampingbendingfor production
Add to favorites
Compare this product
Characteristics
- Operation
- electro-hydraulic
- Function
- stamping, bending, for production, fine-blanking, swaging, marking
- Applications
- for industrial applications, for steel
- Structure
- downstroke, upstroke, C-frame, compact, four column
- Control
- automatic, PLC-controlled, CNC
- Weight
1,227 kg
(2,705 lb)- Overall length
36 in
- Overall width
20 in
- Overall height
84 in
Description
Inline 15 ton (30,000 Lbs) die system consisting of a hydraulic cylinder and all hydraulic accessories needed.
Excellent for wire piercing, flattening, or marking.
Inline 25 ton (52,000 Lbs) die system consisting of a hydraulic cylinder and all hydraulic accessories needed.
Excellent for wire piercing, flattening, or marking.
Dimensions 20″w X 36″l X 84″h (both models)
Weight 2700 lbs (1227 KG) without die sets
Electrical Req 24V I/O, AccuForm machine supplied
Hydraulic 5″ bore, 1″ stroke cylinder
Capacity 15 ton/ 25 ton
Features:
Hydraulics supplied from base machine power pack
Return and end of stroke sensors
Machined die set mounting
Quick change die set with presision stop pins (toolless changeover)
