Wire unwinder Payoff

coilfully-automaticmaintenance-free

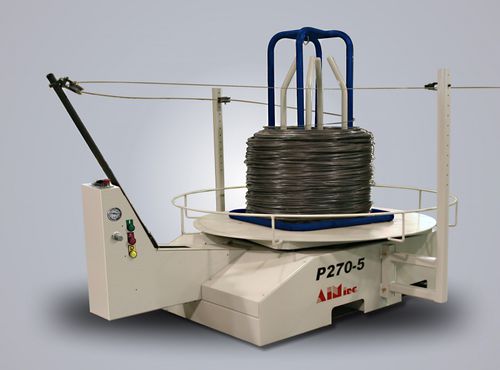

Our fully automatic powered Payoff Units consist of two different models, P270-5 and P270-7.5. heavy-duty construction with oversized tapered bearings assures maintenance-free operation. The dimensions are almost the same in both models, except the power difference between the 5 and 7.5 Hp. A pneumatic cylinder provides the arm tension, making it easy and convenient to adjust via a pneumatic pressure valve. Two material supporting arms with rollers, with quick remove pins. Material Tension Arm, with an analog proximity switch, provides automatic speed control (no wear parts). AC Flux Vector Drive control with programmable speeds and acceleration times. Material under the table, safety switch: the turntable will stop if the material gets tangled and drops below the rotating table. Specifications Controls Rotation selector E-Stop Momentary reverse button Utility Requirements 480 VAC, 3 Phase 50/60 Hz, < 1 CFM air supply.
