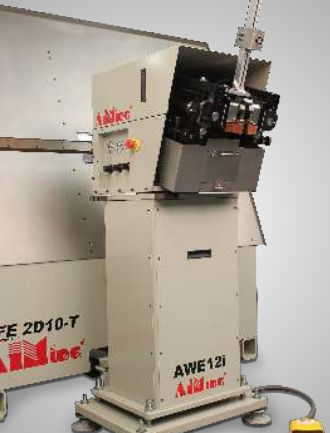

Butt welding machine AccuWeld

automaticonlinefor integration

AW 8i – Mid frequency, inverter (DC) welder, up to 8 mm, 40 KVA, For AFM 2D models. AW 12i – Mid frequency, inverter (DC) welder, up to 12 mm, 100 KVA, For AFM 2D models. AWE 8i – Mid frequency, inverter (DC) welder, up to 8 mm, 40 KVA, for AFE 2D or AFM 3D models. AWE 12i – Mid frequency, inverter (DC) welder, up to 12 mm, 100 KVA , for AFE 2D or AFM 3D models. AWE 8 – AC welder, up to 8 mm, 60 KVA, for AFE 2D or AFM 3D models. AWE 12 – AC welder, up to 12 mm, 150 KVA , for AFE 2D or AFM 3D models. AG1 – Argon gas welder option (For stainless steel welding), all welders attachments on the welder (transfer unit) AT1 – Automatic servo part transfer module, with programmable pick up and drop-off location, 2D models, all sizes, up to 5 kgr (11 Lbs). AT1-G1 – Guide cylinder for large frames (>600 mm >24”). FEATURES Fully automatic welding control: welding schedules saved along with part files Heavy duty/ high precision guides provide accurate and repeatable alignment Pivoting weld head (45 degrees) Adjustable clamp & tip force (gauge) Return & end of stroke sensors Adjustable X position for tool change Adjustable blow nozzle (debris removal) Fully automatic welding control: welding schedules saved along with part files Heavy duty/ high precision guides provide accurate and repeatable alignment Pivoting weld head Adjustable clamp & tip force (gauge) Return & end of stroke sensors Options AW Series – Argon gas port (no bottle); frame transport unit and guide cylinder (large frames) AWE Series – Argon gas port (no bottle) I/O Requirements: AccuForm machine supplied Consumables: weld inserts (Elkonite material) BENEFITS Integration of welding to complete rings and frames
