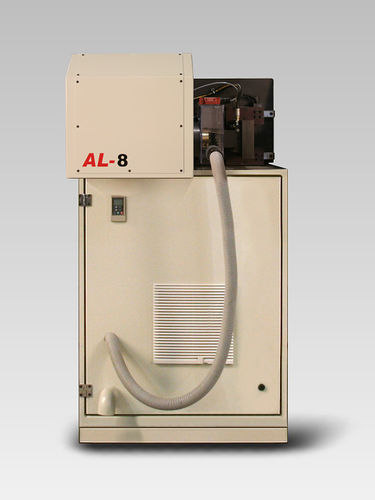

Electric chamfering machine AccuLathe

precisionfor pipesmachine

AccuLathe inline single axis chamfering/cutting unit for chamfering or grooving of the wire (both ends). Wire diameters from 2.0 – 8.0 mm (0.080″ – 0.312″). One set of inserts included per customer specification. AccuLathe inline single axis chamfering/cutting unit for chamfering or grooving of the wire (both ends). Wire diameters from 4.0 – 12.0 mm 0.157″ – 0.47″). One set of inserts included per customer specification. AccuLathe inline single axis chamfering/cutting unit for chamfering or grooving of the wire (both ends). Wire diameters from 6.0 – 16.0 mm. (1/4″-5/8”). One set of inserts included per customer specification. Features: Chamfering or grooving wire on both ends Dovetail design allows for parallel tool alignment Pneumatic clamp on AL8 Hydraulic clamp on AL12 and AL16 Collet chuck for wire clamping Linear guide clamp for easy setup Tooling accepts standard carbide inserts Ability to profile wire using profiled inserts Benefits: Reduces production costs by eliminating additional parts handling In-Line and Secondary Units available Available on AFM modular machine systems
