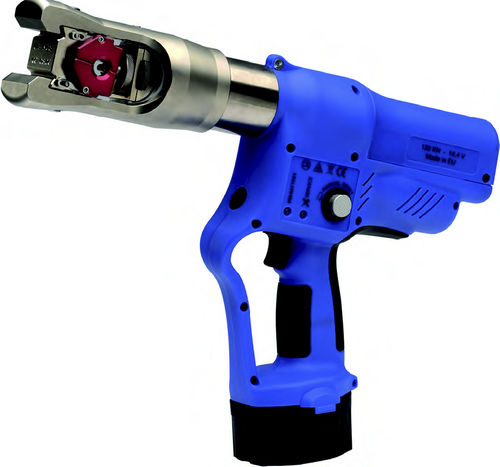

ESC120 electro-hydraulic compression tool
✔ Output force: 120 kN
✔ Stroke: 25 mm
✔ Autonomy: 110 to 220 crimping operations with battery 4.0 Ah
✔ Cycle time: 5 to 8 s depending on the section
✔ Dimensions: 385 x 315 x 72 mm
✔ Weight: 6.8 kg (including the battery)
New features:
✔ Electronic control of the cycle.
✔ Return programming according to the user, either automatic or manual.
✔ Automatic or manual return stroke.
✔ Automatic stop at the end of the cycle.
✔ 2-stage hydraulic pump with pilot-operated valve which increases efficiency between 20 and 40%.
✔ Return sound signal.
✔ New PC software for diagnosis and analysis of data.
