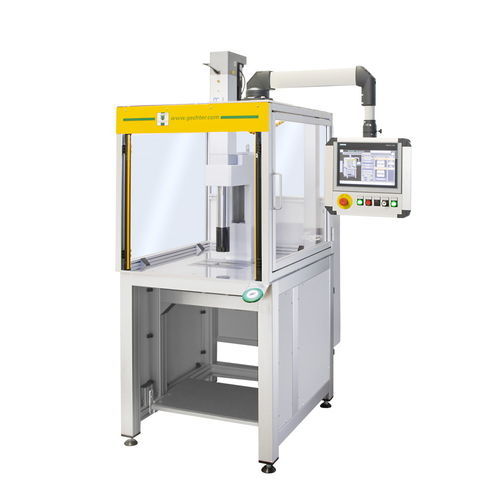

Electric press SRVassemblywith integrated controllerservo-driven
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Function
- assembly
- Control
- with integrated controller
- Other characteristics
- servo-driven
- Force
40 kN
- Stroke
350 mm
(13.78 in)- Working speed
Min.: 0 mm/s
Max.: 250 mm/s
- Weight
495 kg
(1,091 lb)- Overall height
42 cm
(17 in)
Description
Product
Servopress SRV 40 kN designed for industrial pressing and assembly operations. Suitable for integration into production lines and for tool-based pressing tasks.
Dimension table
A: 565
C: 815
D: 340
E: 200
F: 150
G: 120
U: 50
V: Ø 25 H7
X: 410
X1: 350
Y: 1563
Accessories
Technical specifications
Servopress SRV 40 kN designed for industrial pressing and assembly operations. Suitable for integration into production lines and for tool-based pressing tasks.
Dimension table
A: 565
C: 815
D: 340
E: 200
F: 150
G: 120
U: 50
V: Ø 25 H7
X: 410
X1: 350
Y: 1563
Accessories
- Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
- Wired foot switch with plug connection for SpiceFlex / D-Con
Technical specifications
- Press type: Servopress
- Operation: With control
- Overhang: 200 mm
- Installation height: 420 mm
- Stroke length: 350 mm
- Force generation: Servo drive
- Location bore: Ø15 H7
- Clamped piece: Removable clamped piece
- Twist-free guide: Twist-free
- Pressing force: 40 kN
- Traverse speed: Max. 250 mm/s
- Power supply: 16 A / 400 V
- Safety control: D-Con
- Repeat accuracy: 0.01 mm (at thermal steady-state)
- Tool weight: Max. 100 kg (without holding brake 15 kg)
- Standard color: RAL 7035
- Weight: 495 kg
