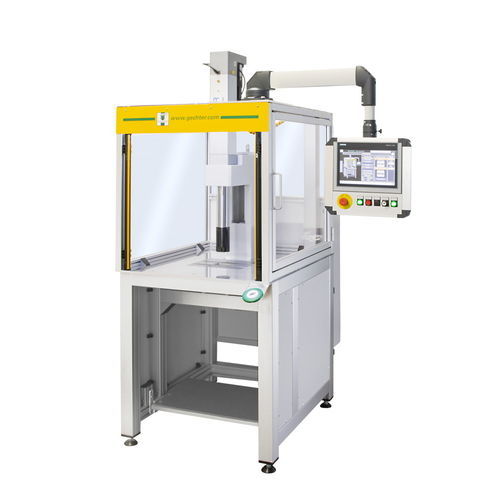

Electric press 20 SRV

formingjoiningassembly

Overview
Servopress (SRV) electric press designed for precision industrial pressing. The unit provides a 20 kN pressing force with servo drive force generation and is intended for controlled, repeatable pressing operations. Suitable for assembly, joining and forming tasks that require adjustable press profiles and high repeatability.

Dimensions
A: 565
C: 815
D: 340
E: 200
F: 150
G: 120
U: 32
V: Ø 15 H7
X: 475
X1: 350
Y: 1413

Accessories

• Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
• Wired foot switch with plug connection for SpiceFlex / D-Con

Characteristics / Technical specifications

• Press type: Servopress
• Operation: With control
• Overhang: 200 mm
• Installation height: 420 mm
• Stroke length: 350 mm
• Force generation: Servo drive
• Location bore: Ø15H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Twist free
• Pressing force: 20 kN
• Traverse speed: Max. 250 mm/s
• Power supply: 16A/400V
• Safety control: D-Con
• Repeat accuracy: 0.01 mm (at thermal steady-state)
• Tool weight: Max 50 kg (without holding brake 10 kg)
• Standard color: RAL 7035
• Weight: 495 kg
