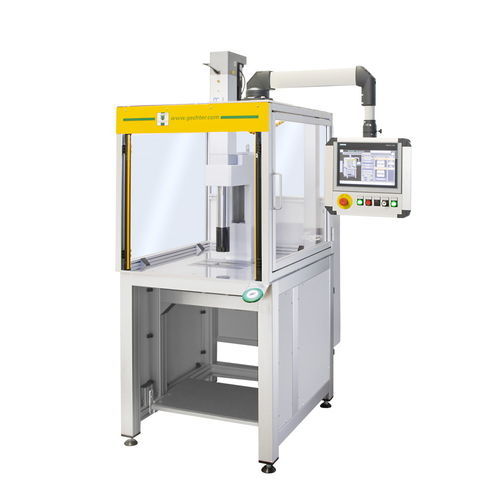

Electromechanical press 20 SRV G601
with integrated controllerservo-driven

Electromechanical press - 20 SRV G601 - GECHTER - with integrated controller / servo-driven
Electromechanical press - 20 SRV G601 - GECHTER - with integrated controller / servo-driven
Electromechanical press - 20 SRV G601 - GECHTER - with integrated controller / servo-driven - image - 2
Add to favorites
Compare this product

Characteristics

Operation
electromechanical
Control
with integrated controller
Other characteristics
servo-driven
Force

20 kN

Opening

15 mm
(1 in)

Stroke

325 mm
(12.795 in)

Weight

495 kg
(1,091 lb)

Description

Dimension table
A: 713
C: 769
D: 340
E: 300
F: 150
G: 120
U: 32
V: Ø 15 H7
X: 325
X1: 325
Y: 1363

Accessories
  • Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
  • Wired foot switch with plug connection for SpiceFlex / D-Con


Technical specifications
  • Press type: Servopress
  • Operation: With control (compatible with SpiceFlex / D-Con)
  • Overhang: 300 mm
  • Installation height: 325 mm
  • Stroke length: 325 mm
  • Force generation: Servo drive
  • Location bore: Ø15 H7
  • Clamped piece: Removable clamped piece
  • Twist-free guide: Twist-free
  • Pressing force: 20 kN
  • Traverse speed: Max. 250 mm/s
  • Power supply: 16A / 400V
  • Safety control: D-Con
  • Repeat accuracy: 0.01 mm (at thermal steady-state)
  • Tool weight: Max. 50 kg (without holding brake: 10 kg)
  • Standard color: RAL 7035
  • Weight: 495 kg
