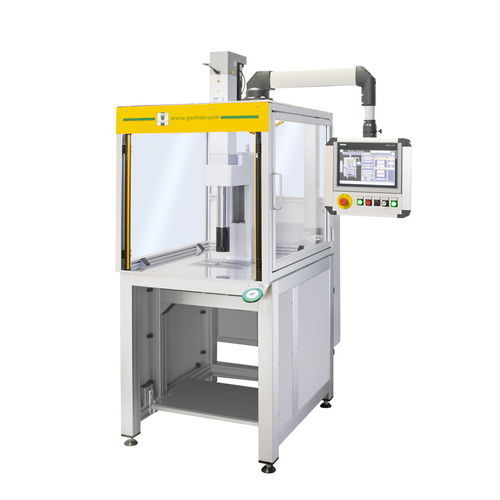

Electric press 10 SRV G601

with integrated controllerservo-drivenwith pedal control

Product overview
Servopress model SRV G601 delivers a pressing force of 10 kN. Designed for precision electric pressing in industrial applications, it features servo-driven force generation, twist-free guidance and a removable clamped piece. Supplied with control compatible with SpiceFlex and D-Con and equipped with D-Con safety control.

Dimension table
A: 713
C: 769
D: 340
E: 300
F: 150
G: 120
U: 32
V: Ø 15 H7
X: 325
X1: 325
Y: 1363

Accessories

• Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
• Wired foot switch with plug connection for SpiceFlex / D-Con

Characteristics / Technical specifications

• Press type: Servopress
• Operation: With control
• Overhang: 300 mm
• Installation height: 325 mm
• Stroke length: 350 mm
• Force generation: Servo drive
• Location bore: Ø15 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Twist free
• Pressing force: 10 kN
• Traverse speed: Max. 250 mm/s
• Power supply: 16 A / 400 V
• Safety control: D-Con
• Repeat accuracy: 0.01 mm (at thermal steady-state)
• Tool weight: Max 50 kg (without holding brake 10 kg)
• Standard color: RAL 7035
• Weight: 495 kg
