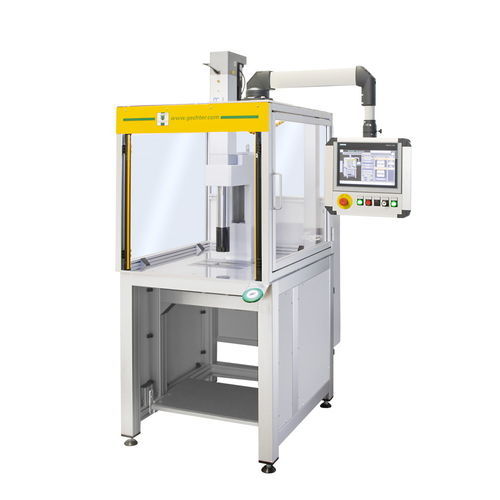

Electric press 10 SRV

for industrial applicationswith integrated controllerservo-driven

Overview
Servopress – Precision electric pressing machine for industrial applications. Designed for controlled pressing tasks with servo drive and D-Con safety control.

Dimension table
A: 565
C: 815
D: 340
E: 200
F: 150
G: 120
U: 32
V: Ø 15 H7
X: 475
X1: 350
Y: 1413

Accessories

• Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
• Wired foot switch with plug connection for SpiceFlex / D-Con

Specs

• Press type: Servopress
• Operation: With Control
• Overhang: 200 mm
• Installation height: 420 mm
• Stroke length: 350 mm
• Force generation: Servo drive
• Location bore: Ø15 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Twist free
• Pressing force: 10 kN
• Traverse speed: Max. 250 mm/s
• Power supply: 16A/400V
• Safety control: D-Con
• Repeat accuracy: 0.01 mm (at thermal steady-state)
• Tool weight: Max 50 kg (without holding brake 10 kg)
• Standard color: RAL 7035
• Weight: 495 kg
