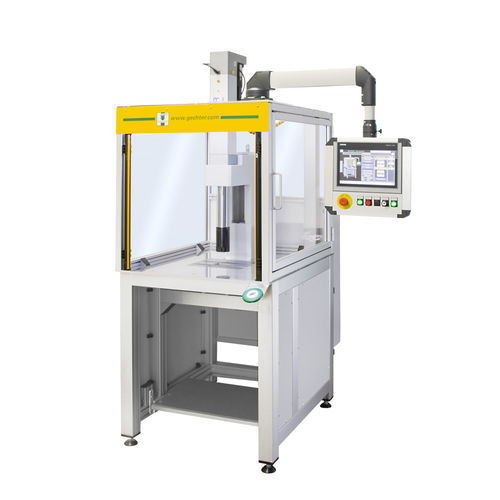

Electromechanical press 40 SRV G601

electronicformingjoining

Overview
Servo press SRV G601 delivering 40 kN pressing force, servo-driven actuation and integrated safety control (D-Con). Designed for controlled pressing and assembly operations with repeatable positioning and programmable control interface.

Dimensions
A: 713
C: 769
D: 340
E: 300
F: 150
G: 120
U: 50
V: Ø 25 H7
X: 310
X1: 310
Y: 1513

Accessories

• Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
• Wired foot switch with plug connection for SpiceFlex / D-Con

Technical specifications

• Press type: Servopress
• Operation: With Control
• Overhang: 300 mm
• Installation height: 310 mm
• Stroke length: 310 mm
• Force generation: Servo drive
• Location bore: Ø15 H7
• Clamped piece: Removable clamped piece
• Twist-free guide: Twist free
• Pressing force: 40kN
• Traverse speed: Max. 250mm/s
• Power supply: 16A/400V
• Safety control: D-Con
• Repeat accuracy: 0,01mm (at thermal steady-state)
• Tool weight: Max 100kg (15kg without holding brake)
• Standard color: RAL 7035
• Weight: 495 kg

Applications

• Assembly pressing and joining operations
• Forming and light forming tasks in production lines
• Integration with automated feeding and tool-change systems
