Electric press SCHMIDT® ServoPress

assemblyautomaticservo-driven

Overview

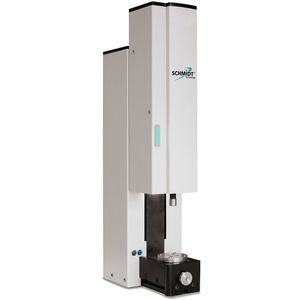

Electric servo-driven assembly presses SCHMIDT® ServoPress provide precise force and position control across a wide performance range (0.3–250 kN, strokes 75–500 mm). Modules deliver high dynamics, excellent repeatability and integrate with PressControl 700 / PressControl 7000 for single workstations and fully automated production lines.

Main features

• Force range 0.3 kN up to 250 kN depending on model.
• High dynamics and excellent repeatability across force and stroke ranges.
• Distance measurement directly on the ram (absolute position measurement) for high positioning accuracy.
• Integrated automatic spindle lubrication and overload clutch protection on selected types.
• Options for integrated energy management and intermediate storage of braking energy on larger models.

Safety and control options

• Integration with PressControl controllers (PressControl 700 / PressControl 7000) for process control and data handling.
• Safety solutions available: SmartGuard, SmartGate and light curtain enclosures; EC type-examination for full-load modules in combination with safety options.

Model highlights
SCHMIDT® ServoPress 602

• Force: 0.3 kN (F max. S3 25 %, 20 s) / 0.2 kN (F 100 % ED)
• Ram stroke: 75 mm
• Speed max: 0–150 mm/s
• Resolution: ±1 µm/inc (distance), 0.4 N/inc (force), 0.1 µm position control
• Typical industries: Medical technology, Watch industry, Micromechanics

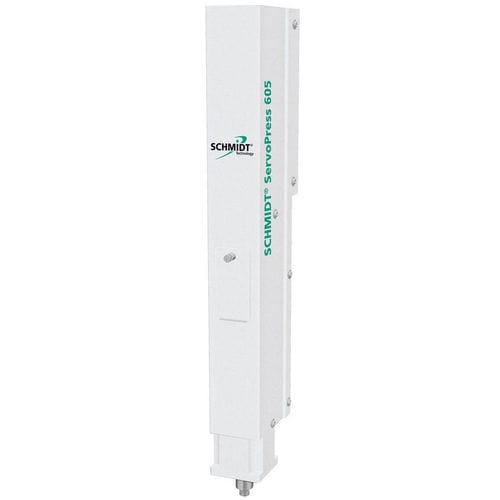

SCHMIDT® ServoPress 605

• Force: 1.0 kN (F max. S3 25 %, 20 s) / 0.5 kN (F 100 % ED)
• Ram stroke: 150 mm
• Speed max: 0–300 mm/s
• Resolution: 0.1 µm position control; measurement acquisition: 2.2 µm/inc (distance), 0.3 N/inc (force)
• Typical industries: Data communication, Electronics, Automotive safety

SCHMIDT® ServoPress 616

• Force: 5 kN (F max. S3 25 %, 20 s) / 3 kN (F 100 % ED)
• Ram stroke: 200 mm
• Speed max: 200 mm/s
• Resolution: 0.1 µm position control; measurement acquisition: 3.2 µm/inc (distance), 1.5 N/inc (force)
• Typical industries: Automotive, Electronics, Precision technology

SCHMIDT® ServoPress 617

• Force: 14 kN (F max. S3 25 %, 20 s) / 7.5 kN (F 100 % ED)
• Ram stroke: 300 mm
• Speed max: 200 mm/s
• Resolution: 0.1 µm position control; measurement acquisition: 4.6 µm/inc (distance), 3.75 N/inc (force)
• Typical industries: Automotive, Building technology, Medical / Pharmacy

SCHMIDT® ServoPress 620

• Force: 35 kN (F max. S3 25 %, 20 s) / 20 kN (F 100 % ED)
• Ram stroke: 400 mm
• Speed max: 200 mm/s
• Resolution: 0.1 µm position control; measurement acquisition: 6.1 µm/inc (distance), 10 N/inc (force)
• Typical industries: Automotive, Optics, Medical / Pharmacy

SCHMIDT® ServoPress 650

• Force: 75 kN (F max. S3 25 %, 20 s) / 50 kN (F 100 % ED)
• Ram stroke: 500 mm
• Speed max: 200 mm/s
• Resolution: 0.1 µm position control; measurement acquisition: 7.6 µm/inc (distance), 24 N/inc (force)

SCHMIDT® ServoPress 655

• Force: 110 kN (F max. S3 25 %, 20 s) / 80 kN (F 100 % ED)
• Ram stroke: 500 mm
• Speed max: 100 mm/s
• Resolution: 0.1 µm position control; measurement acquisition: 7.6 µm/inc (distance), 32 N/inc (force)
• Typical industries: Drive technology, Electrical engineering, Building services

SCHMIDT® ServoPress 660

• Force: 160 kN (F max. S3 25 %, 20 s) / 110 kN (F 100 % ED)
• Ram stroke: 350 mm
• Speed max: 100 mm/s
• Resolution: 0.1 µm position control; measurement acquisition: 5.4 µm/inc (distance), 48 N/inc (force)
• Integrated energy management and intermediate braking-energy storage on high-power models

SCHMIDT® ServoPress 680

• Force: 250 kN (F max. S3 25 %, 20 s) / 200 kN (F 100 % ED)
• Ram stroke: 350 mm
• Speed max: 50 mm/s
• Resolution: 0.1 µm position control; measurement acquisition: 5.4 µm/inc (distance), 75 N/inc (force)
• Designed for peak-force and heavy-duty applications (e‑mobility, high-voltage crimping, sintered metal forming)

Technical data (summary)
Press types: 605 / 616 / 617 / 620 / 650 / 655 / 660 / 680
Force F max. (S3 25 %, 20 s) [kN]: 1.0 / 5 / 14 / 35 / 75 / 110 / 160 / 250
Force F 100% ED [kN]: 0.5 / 3 / 7.5 / 20 / 50 / 80 / 110 / 200
Ram stroke [mm]: 150 / 200 / 300 / 400 / 500 / 500 / 350 / 350
Speed max. [mm/s]: 300 / 200 / 200 / 200 / 200 / 100 / 100 / 50
Position control resolution [µm]: 0.1 (all models)
Force measurement resolution [N/inc]: 0.3 / 1.5 / 3.75 / 10 / 24 / 32 / 48 / 75
Distance measurement resolution [µm/inc]: 2.2 / 3.2 / 4.6 / 6.1 / 7.6 / 7.6 / 5.4 / 5.4
Projection / module dimensions / weights: see model data above

Accessories & add-ons

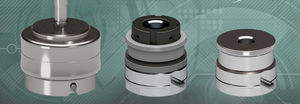

• Upper tooling adapter (tools Ø 5–20 mm)
• Quick coupler for tools (rigid adapter + base holder)
• Press bases (PU) for vibration-free installation
• Slide tables for precise longitudinal and transverse positioning
• External handwheel for intuitive setup of travel profiles

Control & process behaviour

• Real-time evaluation and immediate availability of SPC data
• System ready with standard travel profiles; automatic parameterization after entering position and speed
• Distance measurement on the ram (absolute measuring system) eliminates reference travel
• Intelligent compensation offsets individual part tolerances and system elasticities

Safety concepts

• Patented SmartGuard and SmartGate solutions for slim design and fast feeding
• Light curtain guarding to stop pressing on unauthorized interference

Characteristics / technical specifications

• Servo-driven electric assembly presses with position control resolution 0.1 µm
• Force range 0.3–250 kN, strokes 75–500 mm depending on model
• Force and distance measurement resolution vary by model
• Integrated options: spindle lubrication, overload clutch, energy management on larger models
• Designed for integration in single workstations or fully automated lines with PressControl controllers
