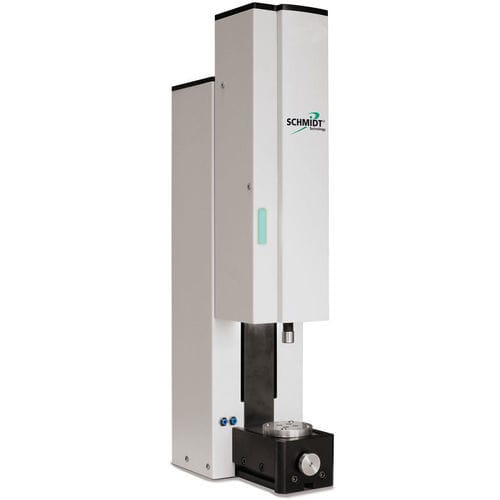

Electric press ServoPress 602

automaticservo-driven

Product description
The SCHMIDT® ServoPress 602 is designed for press operations in precision mechanics, spring testing, medical technology, watch and jewelry production, and small motor and electronics manufacturing. The unit can be equipped with two-hand safety, light curtain or the SCHMIDT® SmartGuard solution.

Mechanical accuracy

• The press ram is guided over the entire stroke by profile rails: maximum stiffness and no bending at full stroke

Force sensor integrated in base

• mechanical overload protection
• mechanical decoupling from the drive train

Press frame

• Press frame made of ground tool steel is an integral part of the press system: high stiffness and dimensional accuracy

XY fine adjustment

• XY fine adjustment in the press table: simple and precise alignment

Measurement accuracy

• Patent-pending absolute position measurement of ram and press head: no zero referencing required

The force sensor is insensitive to influences such as:

• off-axis forces
• weight of the upper tool
• thermal influences from motor and mechanical friction

Integrated features

• two air ports in the front cover plate → prepared for compressed air and/or vacuum in the work area
• dimmable process-area lighting integrated in the ram
• status indicator (e.g. good/bad press result, machine status)
• tool-free ram height adjustment, working height 85.2 mm – 135.2 mm
• adapter for lubricating the ball screw, lubrication possible in any position, no cover plate removal required

Technical data ServoPress 602
Force F max. S3 25%, 20sec: 300 N
Force F 100% ED: 200 N
Ram stroke: 75 mm
Working height: 85.2 mm – 135.2 mm
Speed: 0 – 150 mm/s
Reach C: 70 mm
B x H x T: 158 x 648 x 337 mm
Weight: 38 kg
Force accuracy: ±1 N
Position repeatability: ±1 µm
Force repeatability: 0.4 N
Position control resolution: 0.1 µm
Position data acquisition resolution: 2.2 µm
Force data acquisition resolution: 0.1 N
Power supply (V AC / 50 – 60 Hz): 120 – 240 V

Technical data SmartGuard 602
Opening stroke: up to 160 mm, programmable
Speed: up to 500 mm/s closing, up to 1000 mm/s opening
B x H x T: 357 x 735 x 380 mm
Weight: 36 kg

Technical data Table / Rotary table (Option)
XY travel table in the base – adjustment range ±0.5 mm, fine adjustment for alignment optimization <1/100 mm
Rotary table (option): adjustment range ±0.5 mm / 68 mm; mounting threads: 8 x TK55 M5; centering bushes: 4 x 7H7 mm; angular adjustment ±10°, fine adjustment for angle optimization 0.01°

Characteristics / Technical specifications

• Model: ServoPress 602
• Max. force (S3 25%): 300 N
• Continuous force (100% ED): 200 N
• Stroke (ram): 75 mm
• Working height: 85.2 – 135.2 mm
• Speed: 0–150 mm/s (press movement)
• Reach C: 70 mm
• Dimensions B x H x T: 158 x 648 x 337 mm
• Weight: 38 kg
• Force accuracy: ±1 N
• Position repeatability: ±1 µm
• Force repeatability: 0.4 N
• Position control resolution: 0.1 µm
• Position data acquisition resolution: 2.2 µm
• Force data acquisition resolution: 0.1 N
• Power supply: 120–240 V AC, 50–60 Hz
