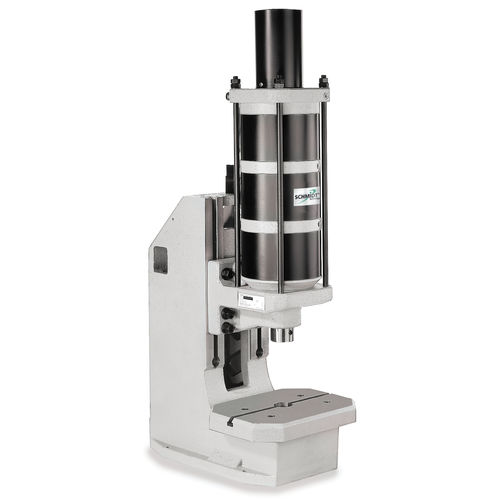

Pneumatic press assemblydownstrokeC-frame
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Function
- assembly
- Structure
- downstroke, C-frame
- Other characteristics
- direct-acting
- Force
Max.: 43 kN
Min.: 1.6 kN
- Opening
Max.: 600 mm
(24 in)Min.: 90 mm
(4 in)
Description
The product family SCHMIDT® PneumaticPress direct-acting with constant force progression is a modular system which optimally meets the requirements in the areas of forming, joining and assembly in the press force range from 1.6 to 43 kN.
In combination with the SCHMIDT® PressControl 75 or 700 control system, the presses become EC type-tested, CE-conform workstations, optionally with process monitoring.
The press systems can be used in single cycle as well as in automatic mode.
* Round anti-rotational ram
* Adjustable ram position in BDC by means of precision lower stop (1 division line = 0.05 mm) on scale
* T-slot with locking set screw in fixture mounting plate
